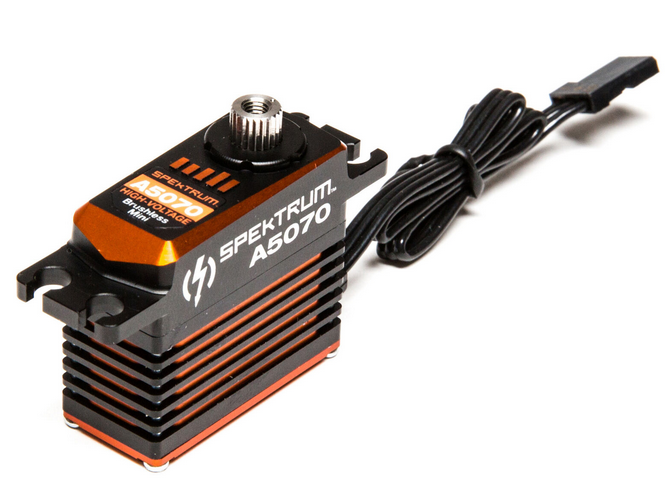

Key Features High torque both on HV and non-HV applications Allows BECs of adjustable BEC ESCs to be set higher to increase performance Acts as a heat sink for the motor and ESC Low deadband, high resolution, with impressive holding torque for unmatched performance Durable high performance finish Overview Spektrum high-voltage, brushless servos deliver dependable power and digital precision with amazing efficiency. Finely tuned electronics and software integrate with powerful brushless motor technology to offer ultra-smooth, high-speed performance more efficiently than servos with conventional motors. The all-aluminum case provides the ultimate solution in durability and heat dissipation, while precision metal gears complete a satisfaction package even the most critical pilot can appreciate.
Application | Airplane or Heli |
Bearing | Dual |
Bushing Or Bearing | Bearing |
Connector Type | Universal |
Connector Wire Length | 11.8 in (300mm) |
Deadband | 2?s |
Gear Type | Metal |
Servo Speed | 0.094 sec/60 deg @6.0V; 0.078 sec/60 deg @ 8.4V |
Maximum Servo Torque | 100-199 oz-in |
Overload Protection | Yes |
Product Height | 1.16 in (29.4mm) |
Product Length | 1.32 in (33.5mm) |
Product Weight | 1.4 oz (40g) |
Product Width | 0.59 in (14.9mm) |
Programmable | No |
Rotation Range | 120? |
Servo Operating Voltage | 6.0 - 8.4V (HV) |
Servo Size Category | Mini and Micro |
Servo Type | Digital |
Torque | 146.43 oz-in @6.0V; 190.58 oz-in @ 8.4V |
Wire Gauge | 22 AWG |
