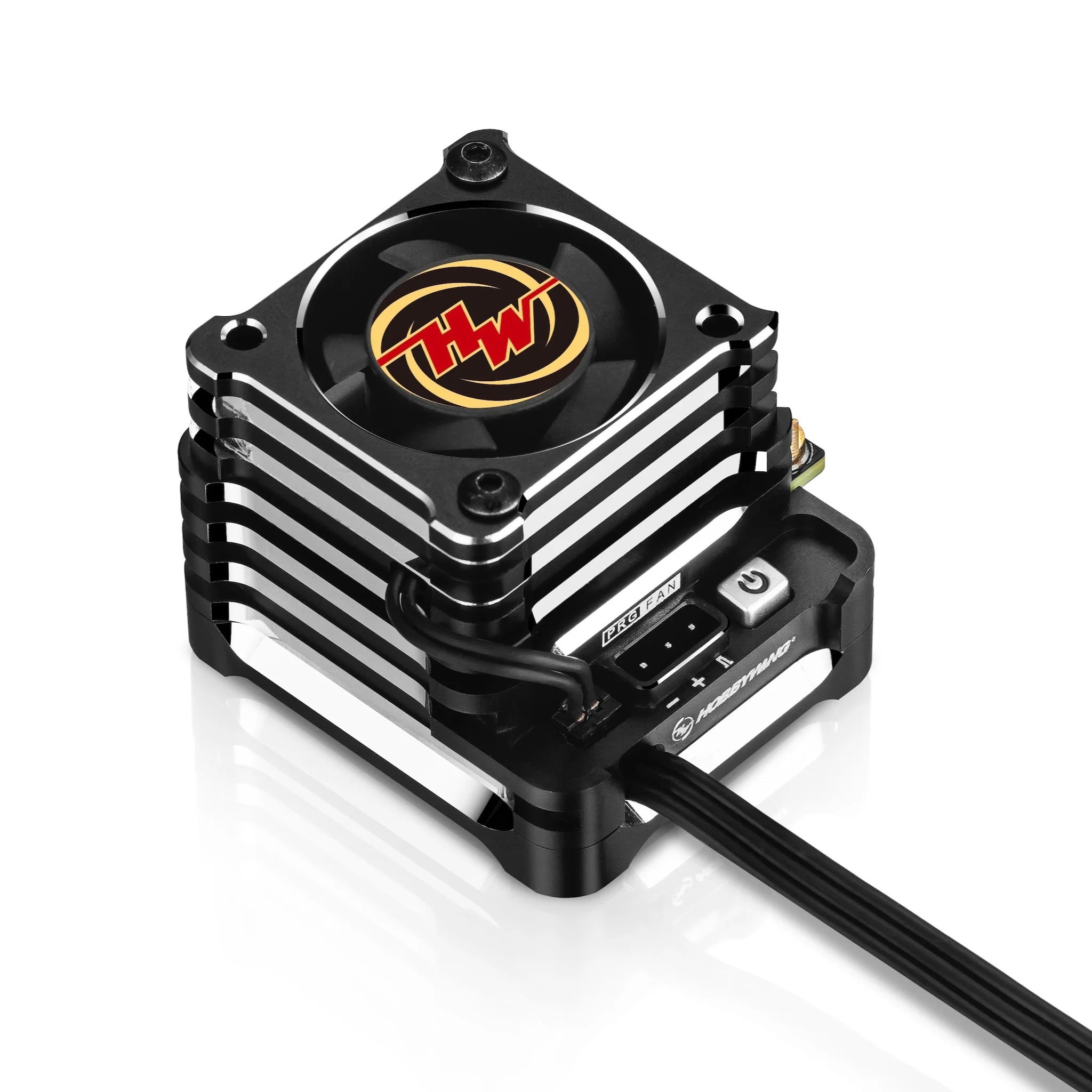

Xerun XD10 Pro ESC - Drift Racing (30112614)
Why you want this: Built-in switch mode BEC with a maximum output of 10A and voltage adjustable...
Availability:
Out Of Stock
- $219.99
- $219.99
- Unit price
- per
10 customers are viewing this product
Couldn't load pickup availability
Description
xWhy you want this:
- Built-in switch mode BEC with a maximum output of 10A and voltage adjustable from 5V to 7.4V (step: 0.1V) for usage with servos & other devices require different voltages.
- A separate PRG/FAN port is able to power an external fan to maximize cooling performance or connect an LCD program box or WiFi module to the ESC.
- Variable frequency regulation of PWM & brake frequencies allows users to precisely regulate the driving & braking forces (of the motors).
- Multiple protections: low-voltage cutoff protection, ESC and motor thermal protection, and fail-safe (throttle signal loss protection), reverse polarity protection (the external standard cap pack will still be damaged if battery reversal occurs).
- Data logging for recording the maximum ESC/motor temperature, motor speed/RPM, and others in real-time.
- Firmware upgrade via Hobbywing multifunction LCD program box (PC only) or OTA Programmer (item sold separately)
Download
Xerun XD10 PRO ESC user manual
Specifications
| ID | Xerun XD10 PRO ESC - DRIFT |
| p/n |
30112614 (Stealth) |30112615 (Passion)
30112616 (Spirit) |
| Application | 1/10th drift car |
| Cont./Peak Current | 100A/800A |
| Input Voltage | 2S LiPo/4-6S NiMH |
| BEC Output | 5-7.4V Adjustable, Continuous Current of 5A (Switch-mode) |
| Wires & Connectors | Standard: 13AWG 200mm |
| Programming device | LCD program box OTA programmer (Available through Firmware update) |
| Firmware | LCD Program box via USB software (PC only) OTA (iOS / Android) |
| Size & Weight | 40.7x35.0x32.0mm (w/Fan) |
| Weight | 95g (w/ wires) |
| Motor Limit* |
Brushless Motor Limit with 2S LiPo/6S NiMH: |
