Key Features

• Pro Scale^® Replica of the 1000+ hp Funco Motorsports Sand Car
• Velineon^® VXL-8s^™ Brushless Power System
• 55+ mph Top Speed with Included High Speed Gearing
• New Sand Car Addition to the X-Series^™ Lineup
• High-Speed Belted Sand Paddle Tires for Maximum Forward Bite
• All-new Rear-Wheel-Drive System with Ultra-HD Steel Gears
• Powerful Front Disc Brakes Combined with Rear Motor Braking
• Metal-Gear 2085XL Servo with 25% More Torque
• Color-Matched Whip Lights with Flex-Tech^™ Mounts
• Ultra-Realistic Scale Body and Precision Details
• Traxxas Stability Management^® for Pro-Level Driving Control
• Extended-Length Aluminum GT-Maxx^® Shocks with Threaded Bodies
• Long-Travel, Independent Suspension with Polished Aluminum-Finish Arms

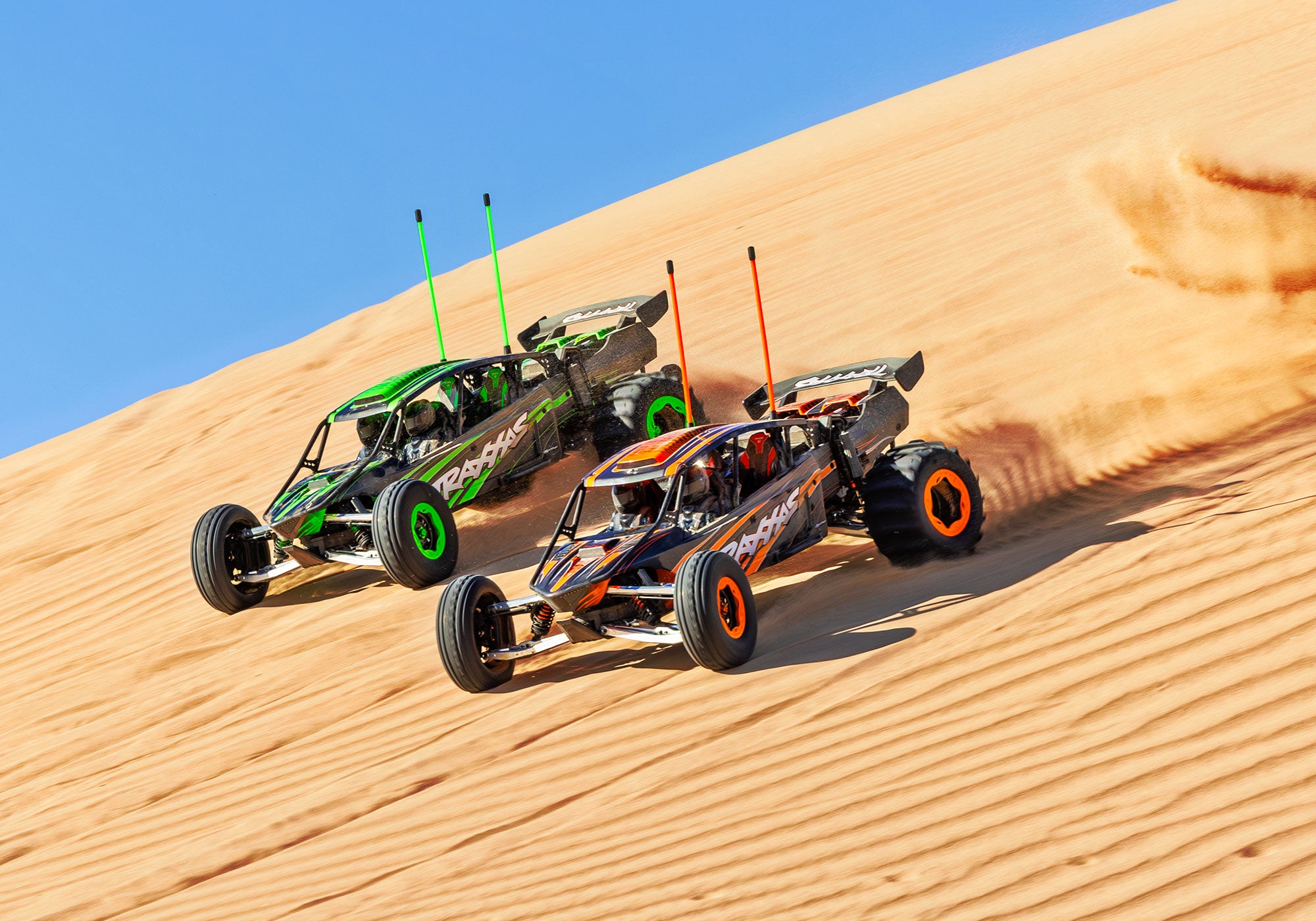

King of the Dunes

Driving a sand car is an adrenaline-fueled thrill ride like nothing else on Earth. Outfitted with 1000+ horsepower engines and trick long-travel suspension systems, sand cars can top 150 mph and wheelie with just a blip of the throttle. The new Traxxas Pro Scale^® Sand Car is a 55+ mph replica purpose-built to deliver the same raw excitement and thrill of driving the full-size Funco Motorsports car in dramatic X-Series^™ scale.

X-Series Size

Both longer and wider than the legendary X-Maxx^®, the Pro Scale Sand Car is the largest member of the X-Series family. This immense size gives the Sand Car incredible scale detail, authentic driving dynamics, and an imposing presence. The Sand Car’s huge footprint provides extra stability to blast down desert trails and fly over dunes with ease.

Scale Details

Traxxas pulled out all the stops to replicate the full-size Funco GTU Sand Car in exact detail. The Pro Scale Sand Car features a full interior with dashboard and driver figures and replica remote-reservoir 3.5″ shocks. The engine is a work of art, comprised of 9 different pieces, including licensed R2C air filters and a Whipple supercharger.

Front Disc Brakes

Powerful front disc brakes work in tandem with the rear motor braking for powerful and controlled 4-wheel stopping power. Sheathed cables clamp the calipers down on drilled stainless steel rotors for scale authenticity. A digital 2075 servo actuates the brakes through an adjustable linkage for greater braking precision and control.

Belted Paddle Tires

The Pro Scale Sand Car’s aggressive paddle tires feature twice the traditional number of ribs for extreme traction off the line. A belted carcass prevents the paddles from distorting for maximum forward bite in the sand and powerful acceleration.

Internal Tube Frame

A rugged tube frame supports the entire Pro Scale Sand Car body from end to end. The heavily reinforced structure protects the car in case of rollovers and provides a rigid mounting point for the wing and clipless mounts. When it’s time to release the body, simply pull on the self-energizing latches and the entire structure lifts off in seconds.

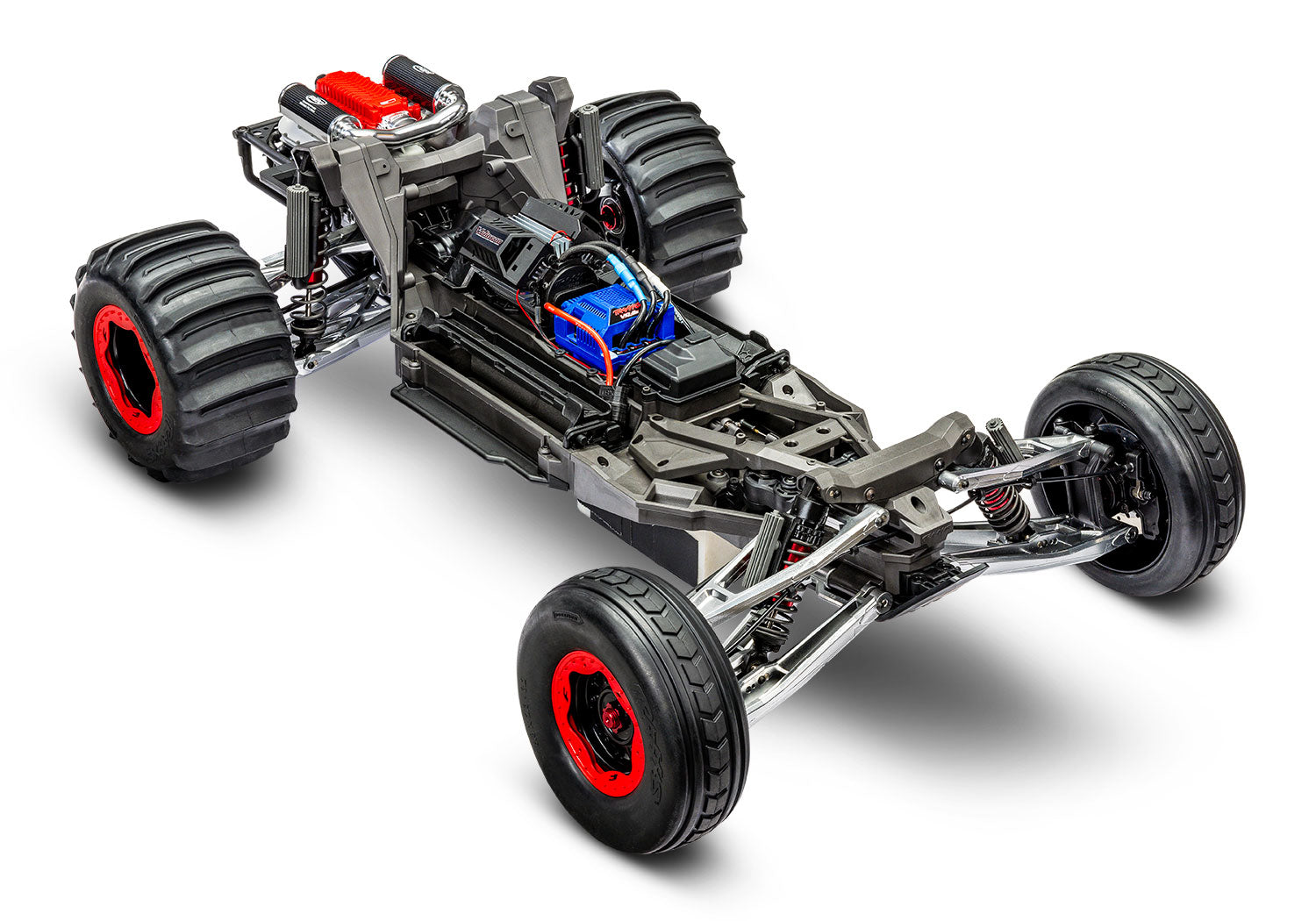

VXL-8s Power System

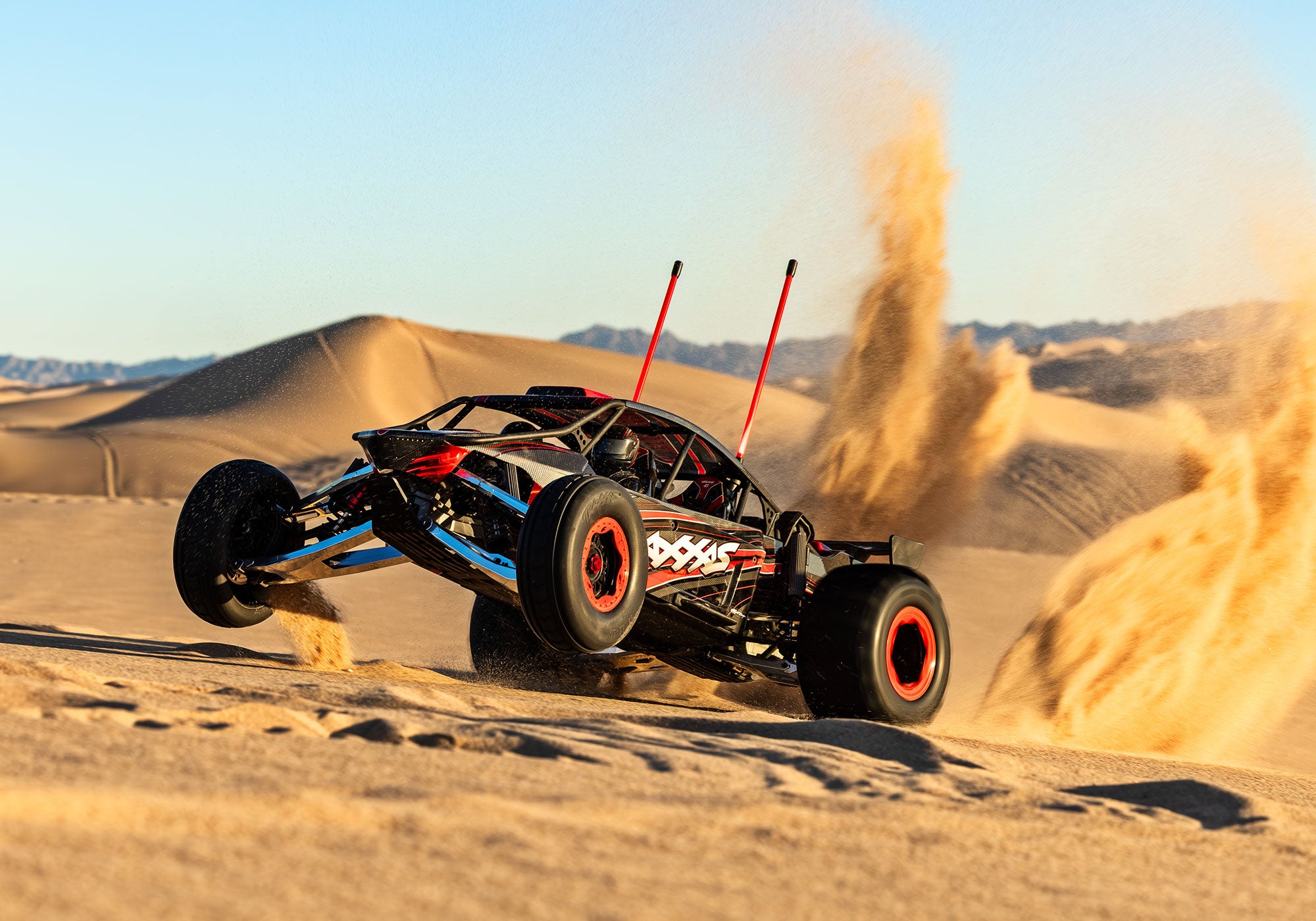

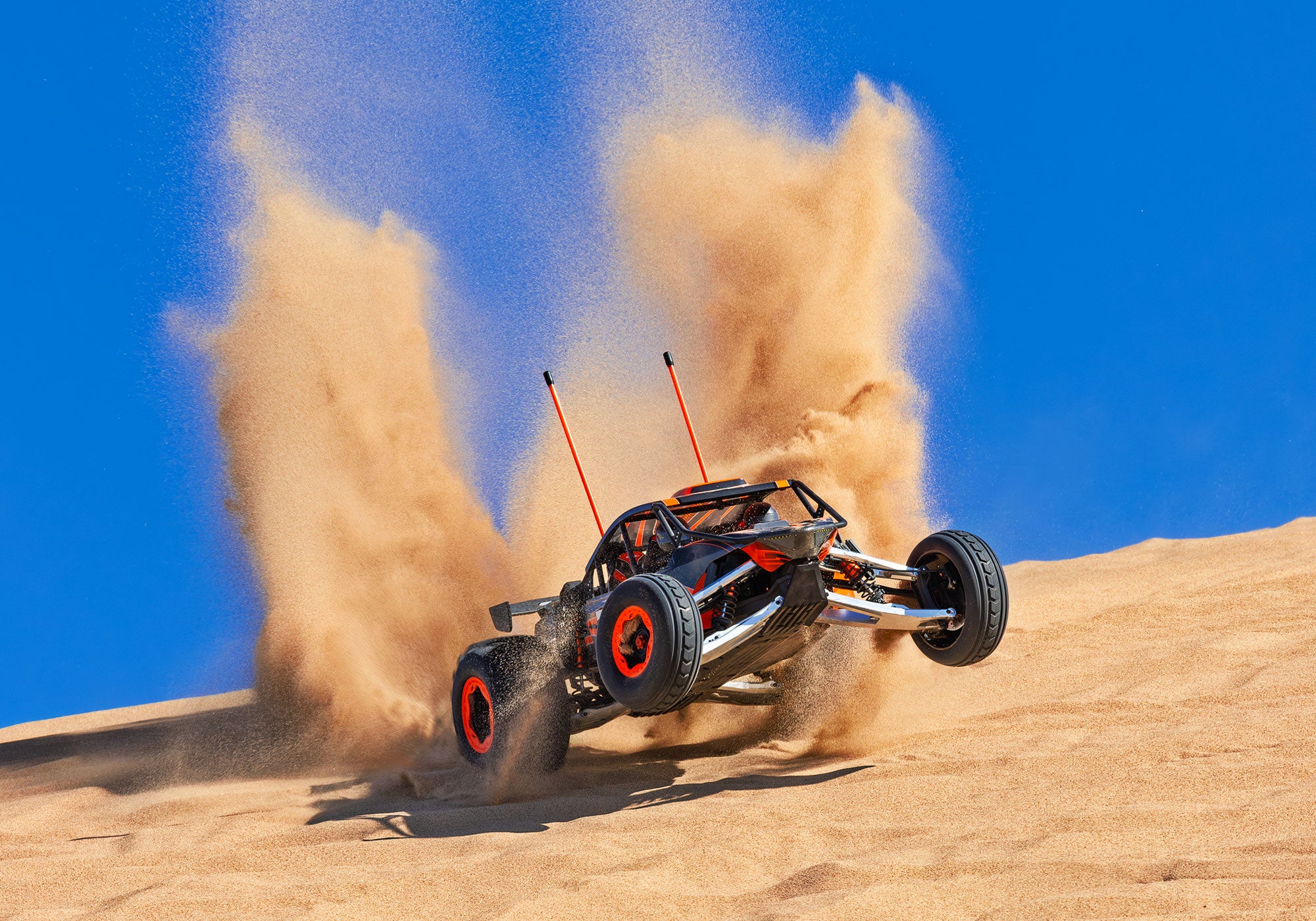

The Pro Scale Sand Car features Traxxas’ most powerful brushless system, the Velineon^® VXL-8s^™ speed control and 1200XL motor. The high-performance VXL-8s maximizes power output across the entire rpm range. Bury the throttle at any speed and the Sand Car instantly wheelies until you back off…or run out of desert.

Precision Driveline

With 30+ volts of brushless power going only to the rear wheels, the Pro Scale Sand Car needs a radically strong driveline. Inside the massively reinforced case, huge module 1.5 wide-face transmission gears feed uninterrupted power to the wheels. A beefed-up X-Maxx differential with larger output cups engages steel driveshafts to form the toughest driveline ever outfitted to a Traxxas vehicle.

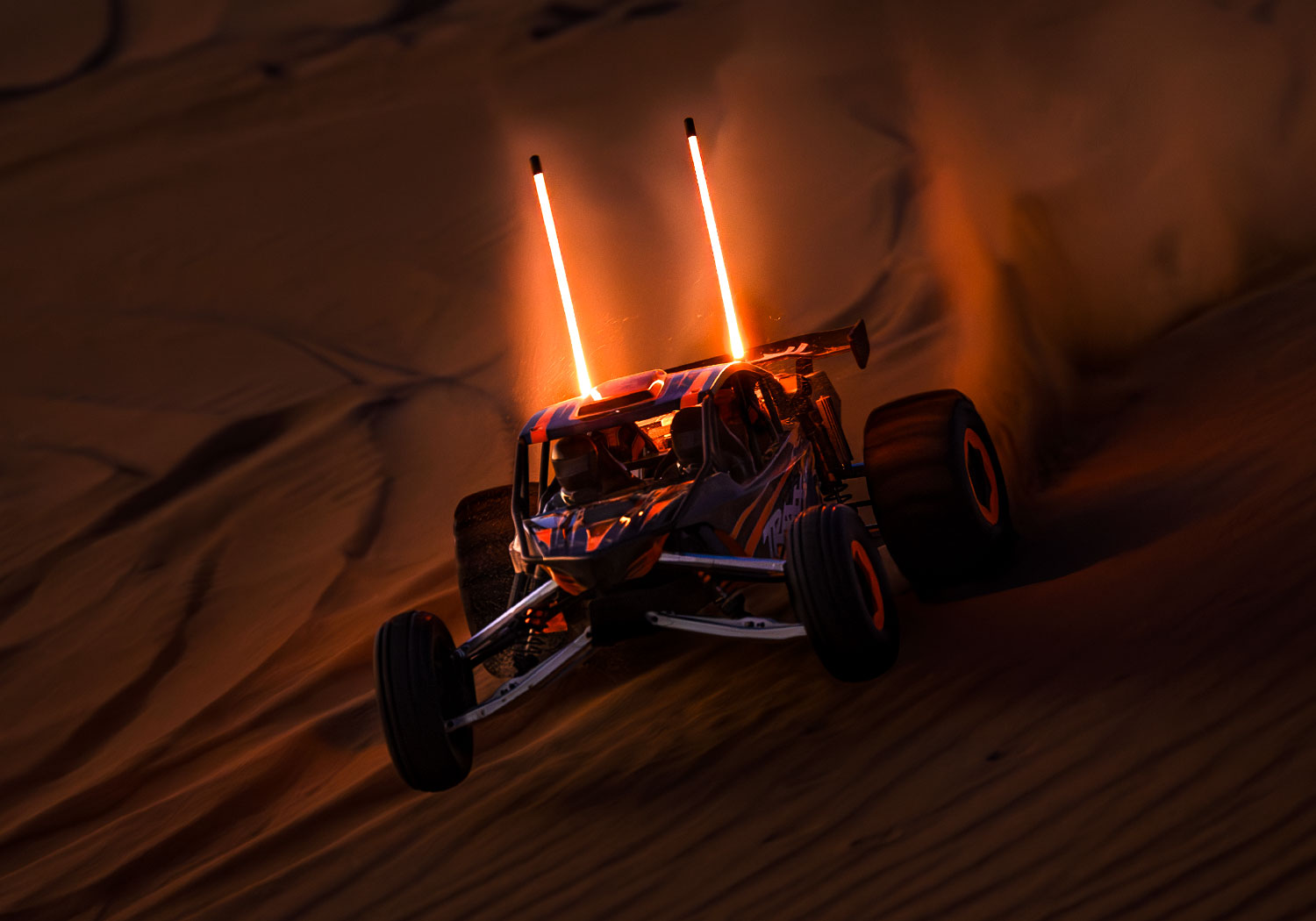

High-Visibility Whip Lights

Colorful whip lights rise over 10 inches above the body to provide a clear and bright visibility marker when storming dunes at 55+ mph. The lights are color-matched to the body to give the car a dramatic look. New Flex-Tech^™ spring-loaded mounts allow the whip lights to bend without breaking in case of rollovers.

Overview

•


  Pro Scale Experience




  Traxxas re-engineered the X-Series platform to create a sand car that would accurately replicate not just the look of the Funco machine, but also its mind-blowing driving dynamics. Grab full throttle on the Traxxas Pro Scale Sand Car and you’ll experience the thrill and excitement of driving a top-tier 1000+ horsepower sand car for yourself.
•










•










•












•










•










•












•










•












•











Pro Scale Sand Car Data



Length:	32 inches (812 mm)
Width:	21.7 inches (551 mm)
Ground Clearance:	1.98 inches (50 mm)
Weight:	22.06 pounds (10 kg)
Height:	11.1 inches (283 mm) - body 19.6 inches (498 mm) - with whip lights
Wheelbase:	21.4 inches (543 mm)
Shock Length:	5.08 inches (129 mm) (front) 7.13 inches (181 mm) (rear)
Tires (Arrow Pattern, Front):	6.8″ x 2.3″ (173 mm x 58 mm)
Tires (Paddle, Rear):	7.5″ x 4.0″ (191 mm x 102 mm)
Wheels (Front):	3.2″ (82 mm, inner) x 4.9″ (125 mm, outer)
Wheels (Rear):	3.6″ (91 mm, inner) x 4.7″ (120 mm, outer)
Speed Control:	Velineon® VXL-8s
Motor (electric):	Velineon® 1200XL Brushless with heat sink and dual fan shrouds

Overall Drive Ratio:	16.4:1 (21/50 motor pinion and spur gear)
Differential Type:	Sealed, four-gear, limited-slip
Gear Pitch:	Module 1.5 (transmission) Module 1.0 (pinion & spur)
Chassis Structure/Material:	Reinforced Nylon Tub
Brake Type:	Electronic (rear) Dual slotted & drilled discs (front)
Drive System:	Direct-drive, RWD
Steering:	Bellcrank
Radio System:	TQi™ 2.4 GHz Transmitter with TSM® receiver
Steering Servo:	2085XL metal gear (450 oz-in.)
Top Speed:	55+ mph with two 4s LiPo batteries and included speed gearing
Skill Level:	5
Battery Tray:	186 mm x 51 mm x 44 mm
Required Batteries:	4 “AA” (transmitter) and 4-cell LiPo battery with iD® (x2)

Type:	1275 Kv sensorless brushless
Weight:	665 grams (23.44 ounces)
Length:	4.32 inches (110 mm)
Diameter:	1.88 inches (48 mm)
Connector Type:	Traxxas 6.5 mm bullet connectors

• Replica Funco Sand Car Clipless Body
  • Full-length tube frame support
  • Detailed interior with driver figures
  • Replica engine with licensed accessories
  • 10″ color-matched whip lights
  • Spring-loaded Flex Tech mounts for rollover protection
  • High-performance rear wing
  • Wheelie bar (included)
• VXL-8s Waterproof Electronic Speed Control
  • Aggressive tuning for more power at any rpm
  • Built-in cooling fan
  • Real-time telemetry via Traxxas Link (requires 6511 Wireless Module)
  • Machined heat sink
  • 10-gauge silicone wire
  • Integrated protection circuits
  • LED status lights
• Velineon 1200XL Brushless Motor
  • “Big Block” brushless motor
  • 4-pole 1275 Kv
  • 5 mm output shaft
  • Oversize aluminum heatsink for improved cooling
  • Dual cooling fans
• 55+ mph with Two 4s LiPo Batteries and included optional speed gearing
• Traxxas Stability Management^® (TSM)
  • Improves straight line acceleration and braking on low-traction surfaces
  • Never dulls throttle or slows the truck
  • Adjusts from off to 100% assistance from the transmitter
• TQi 2.4 GHz 2-Channel High Output Radio System
  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
  • Programmable multi-function knob
  • 5-channel micro receiver (6533) with fail-safe security
  • Patented waterproof receiver box with easy-access plug

• Ultra-Heavy-Duty 8s Driveline
  • Steel CV driveshafts & axles
  • New larger X-Series differential output yokes
  • Fully machined aluminum stub axles
• Direct-Drive Transmission
  • 1.5 mod steel gears
  • 1.0 mod steel pinion and spur gears
  • Fixed gear mesh system
• Rear Differential
  • Huge 1.5 module straight-cut ring gear
  • Sealed 4-gear design
  • Splined outdrives attached with external thru-bolt method
  • Reinforced bulkhead and covers for increased bearing support
• Rock-Solid Motor Mounting System
  • Precise preset gear mesh adjustments
  • 4 keyed pins lock the motor in place
  • Motor retention separate from gear mesh
• GT Maxx Shocks
  • Machined aluminum threaded body
  • Extra-large bore and capacity
  • Height-adjustable spring retainer
  • Heavy-duty composite shock caps with pivot balls
  • Lower spring perches bolted on
• Suspension
  • Polished aluminum-finish suspension arms
    • Made from cold-weather HD composite
  • Performance-optimized geometry
  • Double-shear connections
  • High-strength steel suspension pins with retainers
  • 4 mm machined pivot balls
  • Fixed high-strength camber and toe links
  • Heavy-duty steering blocks and axle carriers
  • Oversized wheel bearings

• Braking
  • Electronic rear brakes
  • Powerful front disc brakes with spring-loaded calipers
  • Operated by 2075 high-torque servo
  • Sheathed brake cables
  • Steel slotted and drilled brake rotors

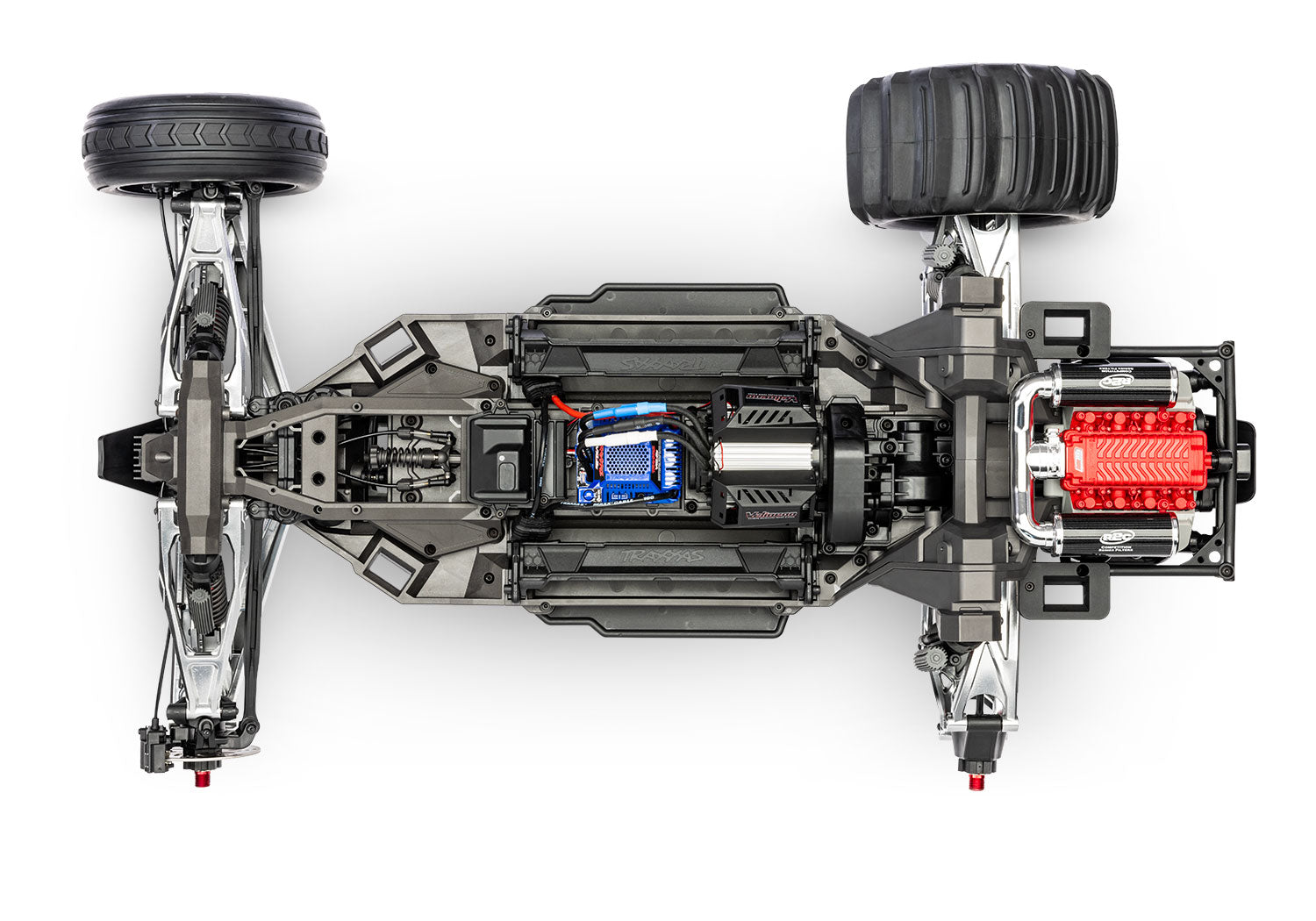

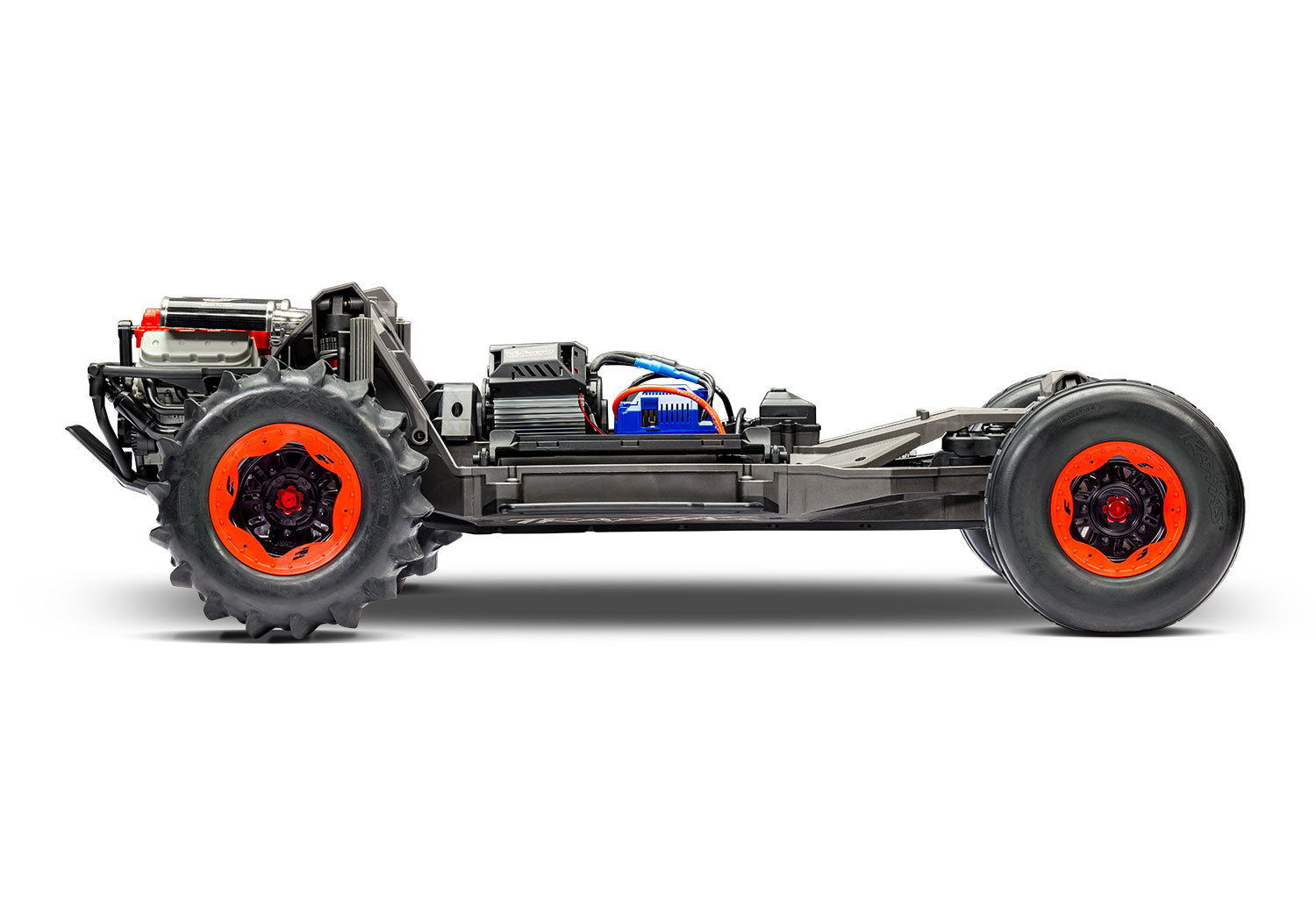

• Low-CG Chassis Design
  • Modular chassis with interlocking bulkheads
  • Low CG for improved handling

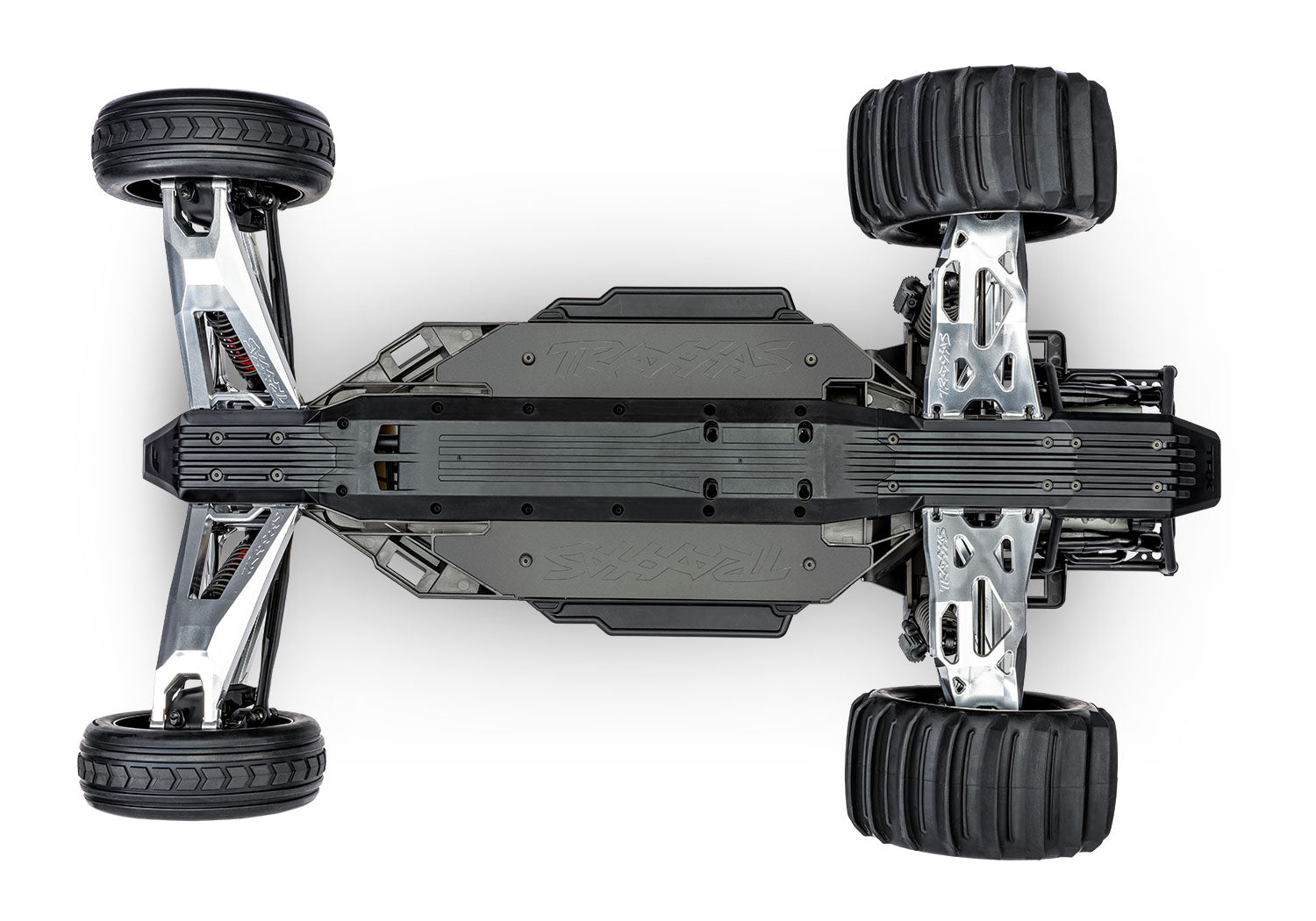

  • Flat bottom design
  • Interlocking skid plates
  • High-strength buttressing on shock towers
  • Dual snap-lock battery compartments
  • Protects batteries from side impacts
  • Allows secondary battery-clip security
  • Interlocking components for tight tolerances
  • Wire management for clean appearance
• Wheels and Tires
  • 7.5" Rear paddle tires
  • Aggressive paddle design
  • Optimized for sand performance
  • Belted carcass resists ballooning
  • 6.8" front arrow-pattern tires
  • Excellent traction on sand, dirt, and pavement
  • Replica Funco beadlock wheel design
  • Color-matched beadlock rings and axle nuts
  • High-strength glue and bead design
  • Huge 24 mm splined wheel hubs
• Steering
  • Powerful 450 oz-in steering servo (2085XL)
  • Cam-style servo saver
  • Dirt evacuation channels
  • Fully waterproof
• Sealed Ball Bearings
• Hex hardware with Rust-Resistant Black Oxide Coating

MODEL 109076-4: Pro Scale^® 2WD Sand Car. Fully assembled, Ready-To-Race^®, with TQi^™ 2.4 GHz radio system, VXL-8s brushless power system, and Replica Funco clipless body.

What’s In The Box:

• Pro Scale Sand Car Ready-To-Race^® model with Traxxas Big Block^™ brushless motor
• VXL-8s waterproof electronic speed control with integrated telemetry
• Quick Start Guide
• TQi^™ 2.4 GHz radio system
• High visibility whip lights
• Wheelie bar
• Speed gearing
• High quality maintenance tools

What You’ll Need:

• LiPo Batteries

  Traxxas recommends dual 4-Cell, 6700 mAh Power Cell LiPo batteries (part 2890X) or the Dual 4s Completer Pack (Part 2997).

• LiPo Balance Charger with iD^®

  Traxxas EZ-Peak^® Live Dual 4s-capable charger is recommended for easy and fast charging performance (model 2973).

• AA Alkaline Batteries

  Four AA alkaline batteries for the transmitter.
