Traxxas 1/10 Scale And Trail Crawler Mercedes-Benz G 500 4x4 (82096-4)
Traxxas 1/10 Scale And Trail Crawler Mercedes-Benz G 500 4x4 (82096-4)
Traxxas 1/10 Scale And Trail Crawler Mercedes-Benz G 500 4x4 (82096-4)
Traxxas 1/10 Scale And Trail Crawler Mercedes-Benz G 500 4x4 (82096-4)

Traxxas 1/10 Scale And Trail Crawler Mercedes-Benz G 500 4x4 (82096-4)

Parts List Transmission Assembly Chassis Assembly Modular Assembly Rear Assembly Body Assembly Front Assembly Officially Licensed Mercedes-Benz G 500 4X4² Body Scale details:...
Availability: Out Of Stock
$419.99
$419.99

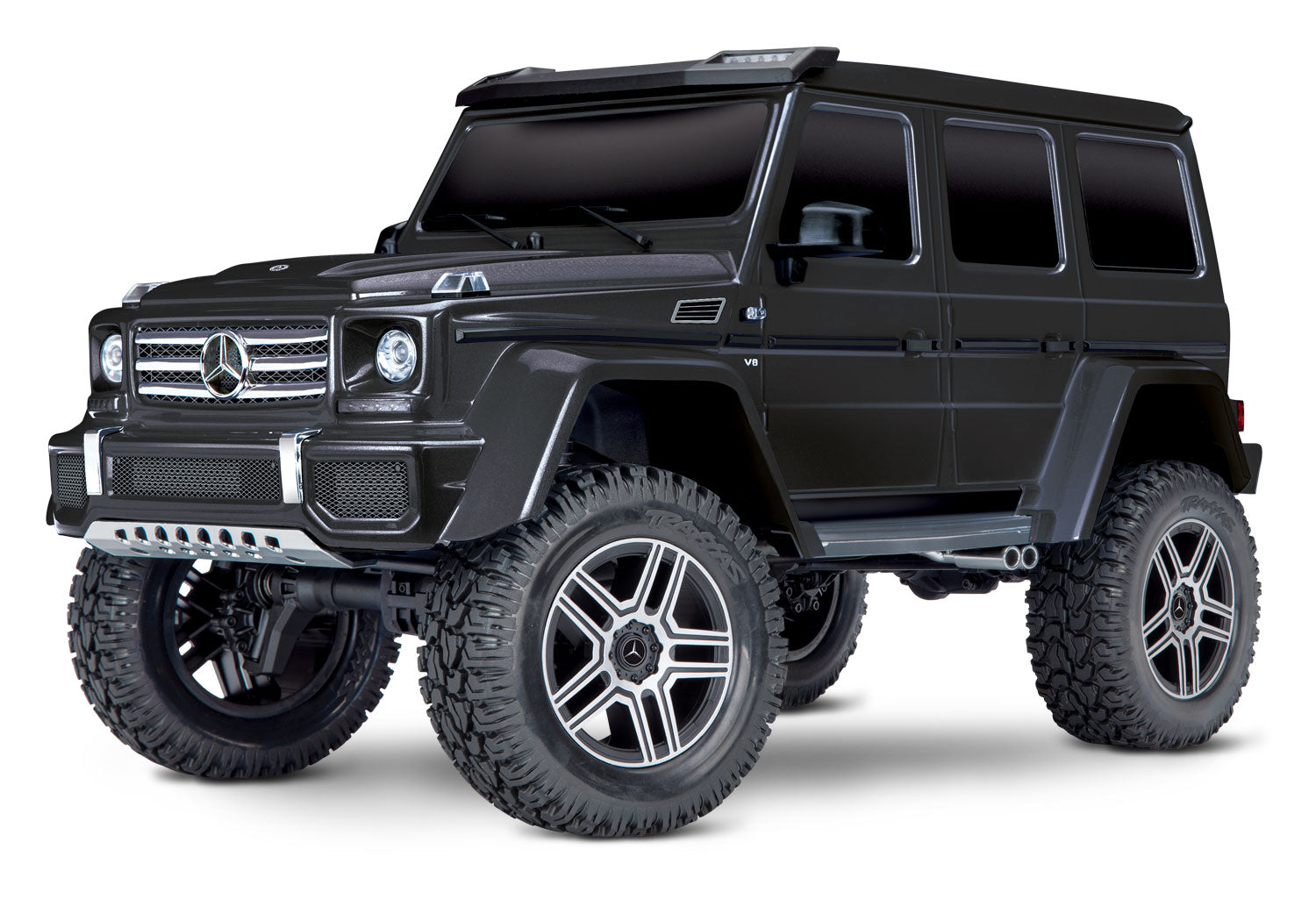

Color: Black
10 customers are viewing this product
Description
Description
x

Parts List

Transmission Assembly

Chassis Assembly

Modular Assembly

Rear Assembly

Body Assembly

Front Assembly

  • Officially Licensed Mercedes-Benz G 500 4X4² Body
    • Scale details: chrome grille, front skid plate, side mirrors, side trim, windshield visor with light buckets, door handles, wipers, and dual side exhaust
    • Clear front headlight lenses, marker lights, hood blinkers, and colored tail lights accept LED light kit
    • Authentic decal sheet
    • Full Nylon composite wheel wells and floor pans
  • Trail-tuned XL-5™ HV Waterproof Electronic Speed Control
    • Fully waterproof design
    • Five drive profiles
      • Sport Mode — forward / brake / reverse
      • Race Mode — forward / brake / no reverse
      • Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
      • Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
      • Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
    • Traxxas EZ-Set®  one-button setup
    • Large, efficient heat sink
    • Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3S LiPo (7.4–11.1V)
    • Two stage low voltage protection (LVD)
  • Titan 550 Motor
    • Powerful Titan™ 21T reverse rotation motor with internal cooling fan
    • Precision, preset gear mesh adjustments
    • Motor retention separate from gear mesh
  • TQi™ 2.4 GHz Radio System
    • 4-channel transmitter
    • 5-channel micro receiver (#6533) with fail-safe security and integrated telemetry ports
    • Compatible with optional TQi Traxxas Link Wireless Module (#6511) to access full Traxxas Link app functionality (sold separately)
    • Automatically stores and loads settings for up to 30 Traxxas Link enabled models
    • Exclusive Cruise Control feature for extended trail driving
    • Adjustable steering and throttle sensitivity (exponential)
    • Adjustable steering and throttle endpoints
    • Patented waterproof receiver box with easy-access plug
  • Rigid Steel Frame
    • 1.5 mm thick steel frame rails increase torsional rigidity
    • Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
    • Adjustable rear shock tower positions for SWB and LWB configurations
    • Bumpers adjust fore and aft
    • Rugged rock sliders with caps adjust for width
    • Wire routing clips integrated into frame rails
  • Innovative Battery Compartment
    • Hinged battery strap allows quick and easy battery access
    • No pins to lose
    • Accommodates different height batteries
    • Accepts full-size long battery packs
    • Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
    • Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
  • Portal Axles
    • Increase ground clearance
    • Eliminate torque twist
    • Steel gears
    • Improve axle geometry and reduce strain on driveshafts
  • Drivetrain
    • Full-time shaft driven 4-wheel drive
    • Tough 6 mm stub axles
    • Steel front CV driveshafts
    • Hardened steel rear axle shafts
    • Remote locking steel gear differentials with cable-actuation
    • Steel gear transfer case
  • Transmission
    • Two speed high/low range with remote shifting
    • Dual horizontal shafts
    • Twin friction plate slipper clutch
    • Easily removed for servicing
  • Steering
    • Chassis mounted 2075X metal gear digital servo
    • Superior 45° steering angle
    • Direct steering (no servo saver)
    • Steering geometry corrected for bump steer
  • Suspension
    • Front — 3 link with panhard
    • Rear — Triangulated 4 link
    • Heavy-duty rod ends with steel hollow balls
    • 5 mm diameter steel link rods with 4 mm threaded ends
  • Aluminum GTS Shocks
    • Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
    • Silver-anodized aluminum bodies
    • Threaded bodies with collars easily adjust ride height
    • Silky smooth damping for the toughest trails
    • O-ring cap seal and dual X-ring shaft seals
  • Wheels and Tires
    • Large 2.6” Replica chrome wheels with hub inserts
    • Pre-mounted Canyon Trail tires with trail-tuned foam inserts
    • Trail tuned S1 rubber compound
    • 12 mm steel hex
  • Sealed Ball Bearings
  • Hex hardware with rust-resistant black oxide coating
  • Requires Battery and Charger (Sold Separately)
