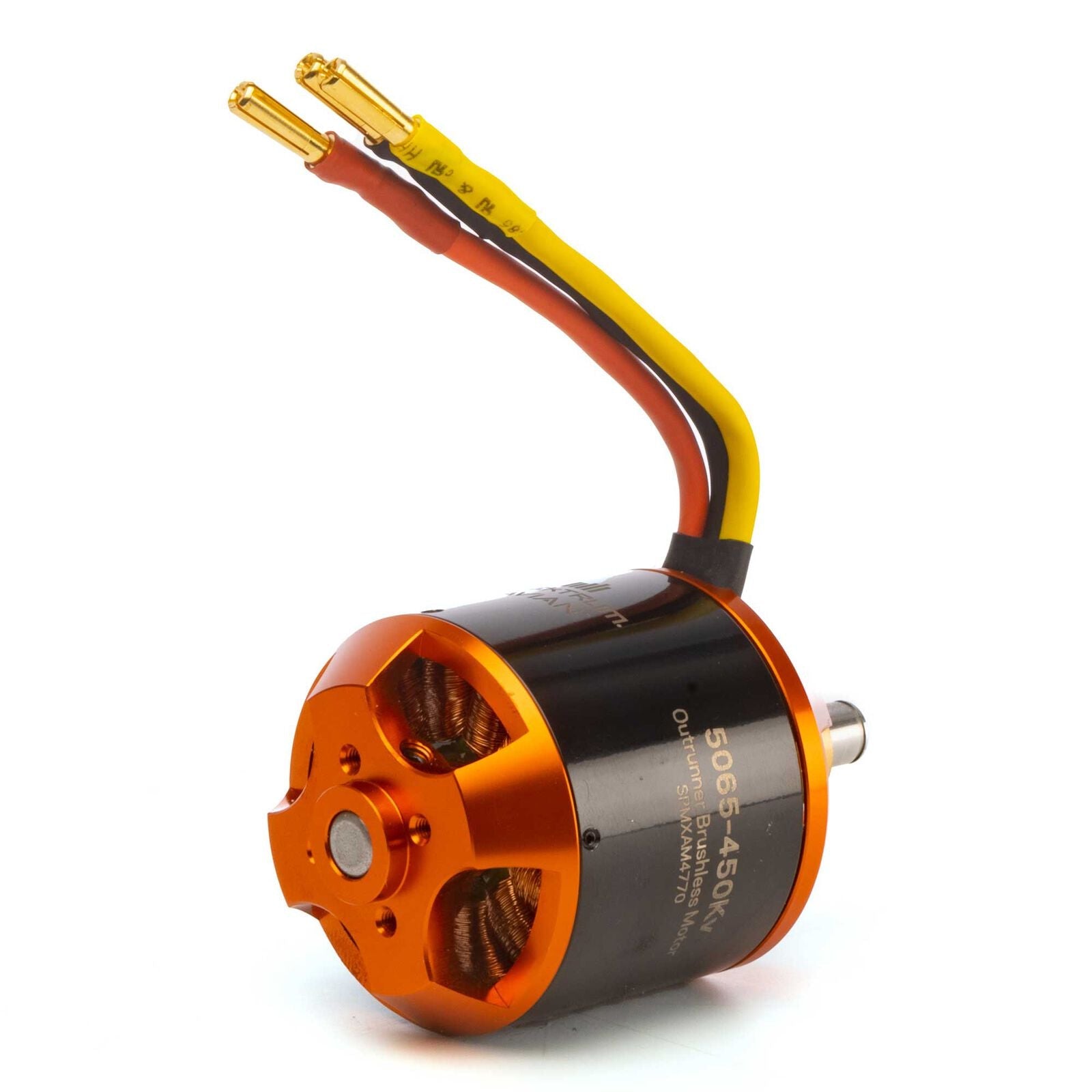

Spektrum Avian 5065-450Kv Outrunner Brushless Motor (SPMXAM4770)
Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models The combination of superior performance,...
Availability:
Out Of Stock
- $139.99
- $139.99
- Unit price
- per
10 customers are viewing this product
Couldn't load pickup availability
Description
xTake to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models
The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there's Avian Brushless motor that's ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!
Key Benefits
- Rapid Acceleration and Extreme Torque:Â Expertly engineered to deliver fast, smooth and precise acceleration and power.
- Reliable and Virtually Maintenance-free:Â Equipped with double-shielded sealed bearings, precision balanced motor bell and gold-plated bullet connectors.
- Excellent Cooling:Â Engineered to help airflow move through the motor for efficient cooling during and after flight.
Features
- Lightweight design
- Powerful and durable Rare-Earth Neodymium magnets
- 14-pole stator for smooth and precise propulsion
- Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
- Perfect match for the Spektrum Smart Avian 100 amp ESC
- Perfect electric conversion upgrade for 20cc size gas combustion power systems
Important Specs
- Recommended Voltage Range – 18.5 - 22.2V / 5-6S LiPo
- Recommended Propeller Range – 16x6 to 17x8 Electric Propeller
- Recommended Model Flying weight – 3D 4080 g (9 lbs) - Sport 6520 g (14.5 lbs)
- Max Wattage – 1200w
- Max Current – Max Burst Amps (85A) Max Continuous Amps (80A)
Product Specifications
| Recommended Speed Control | 80A |
| RPM/Volt (Kv) | 450 |
| Shaft Length | 0.79" (20 mm) |
| Connector Type | 4mm Bullet |
| Product Length | 2.6" (66 mm) |
| Product Weight | 14.1oz (400g) |
| Shaft Diameter | 0.32" (8 mm) |
| Maximum Burst Current | 80A |
| Maximum Continuous Current | 50A |
| Motor Type | Brushless |
| Motor Design | Outrunner |
| Adjustable Timing | No |
| Outer Diameter | 2" (51 mm) |
| Idle Current (Io) | 2.3A |
| Input Voltage | 18.5 - 22.1V |
