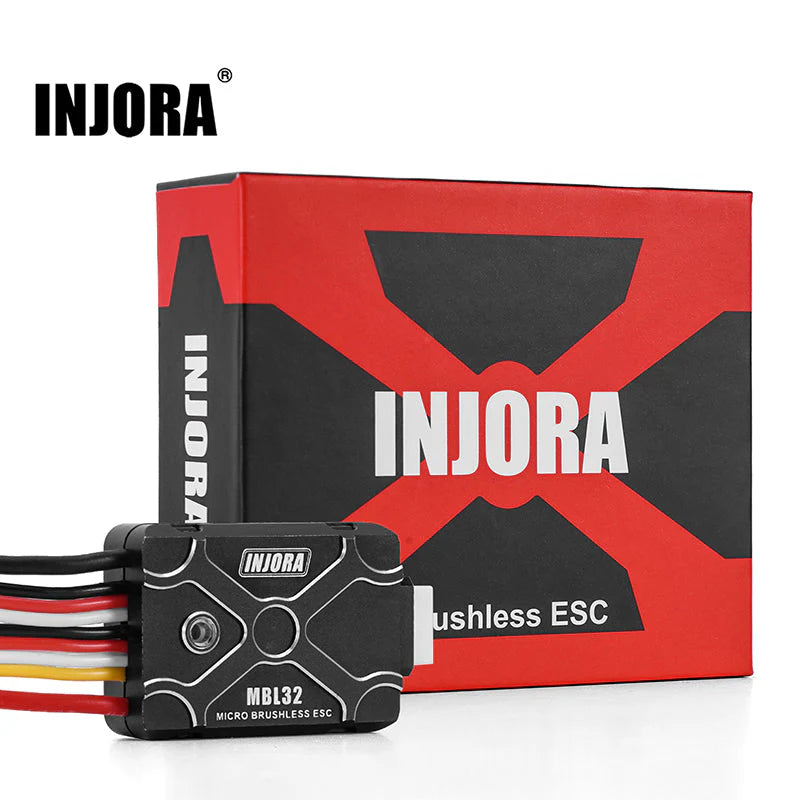

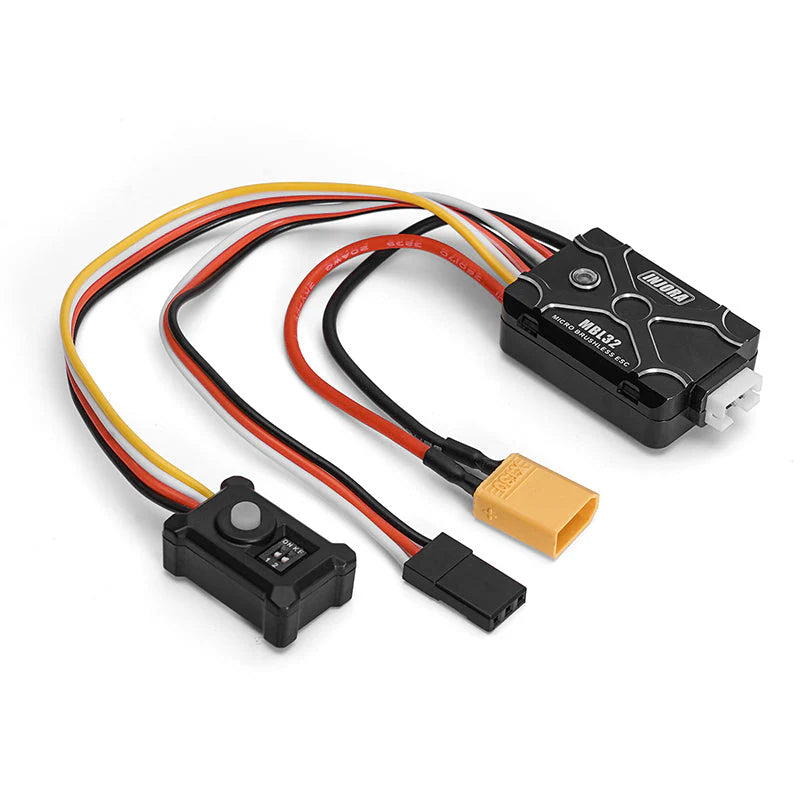

INJORA: Micro Brushless MBL32 ESC for 1/18 1/24 RC Crawler (ESC ONLY) (MBL32)

INJORA Micro Brushless MBL32 ESC & 1621 Purple Viper Motor Combo for 1/24 SCX24

Note:

• The motor is only compatible with: 1/24 SCX24
• You need to cut the ESC tray to make room for installing the brushless kit.
• The ESC is compatible with most of the receiver and remote combinations that with CH2
• Instruction Manuals
• Programming Tutorial  (Your device has been pre-configured with the optimal settings right out of the factory, so no further setup is required.)
• Never plug the battery upside down, otherwise the ESC will immediately burn out！

If your transmitter does not control the car well, please try these:

1. If you are using a 2S battery, please set the BEC output to 6.0V using the DIP switches. Different settings are required for 2S and 3S batteries!
2. Before powering on, set the transmitter's throttle trim to 0% at neutral.
3. Increase the distance between the transmitter and the car to avoid signal interference.
4. Please use a 2S battery of 750mAh or more, or a 3S battery of 450mAh or more. For optimal performance, we recommend using a 3S Lipo battery.

Features:

• INJORA MBL32 ESC based on the AM32 firmware, is meticulously tailored for Micro crawlers and is programmable.
• The MBL32 ESC features a built-in BEC with adjustable output: 6V/7.4V
• Smooth and linear at low speeds, powerful and aggressive at high speeds.
• Runs more quietly than brushed systems, producing virtually no noise.

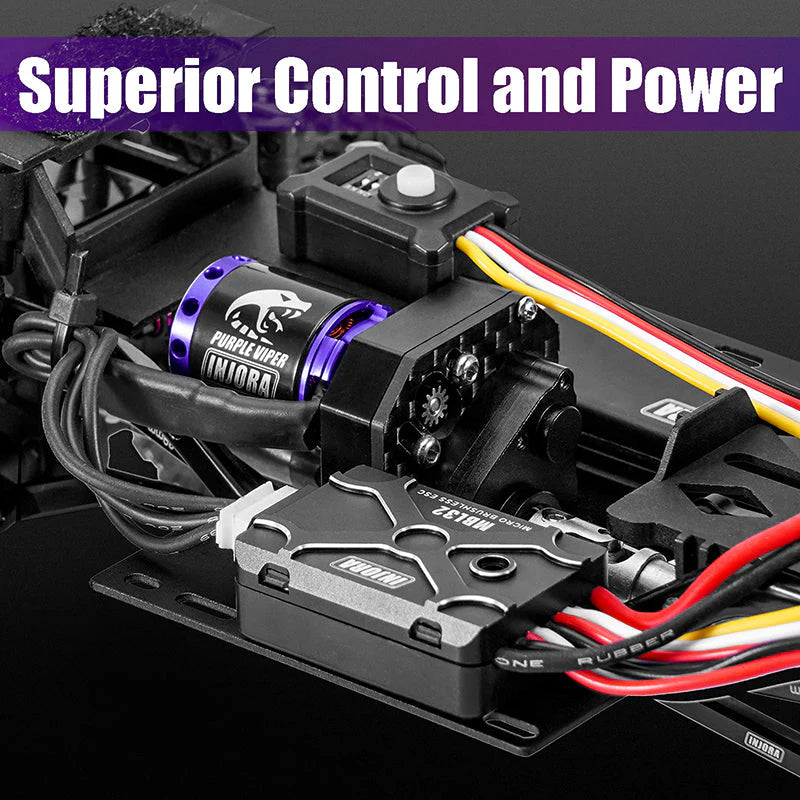

• 1621 Purple Viper outrunner motor, equipped with a mounting plate to mount the motor on the SCX24.
• Plug-and-Play Convenience: Includes multiple adapter cables for different battery connectors.

ESC Specifications:

• Part Number: MBL32 (MBL: Micro Brushless)
• Max.Current: 30A
• LiPo Cells: 2-3s
• Compatible Motors: INJORA 1621/2204
• Applications: 1/18 1/24 RC Crawlers
• BEC: Max 3A
• BEC Output: 6.0v/7.4V (adjustable by DIP switch)
• Motor Connectors: PH2.0 3Pin

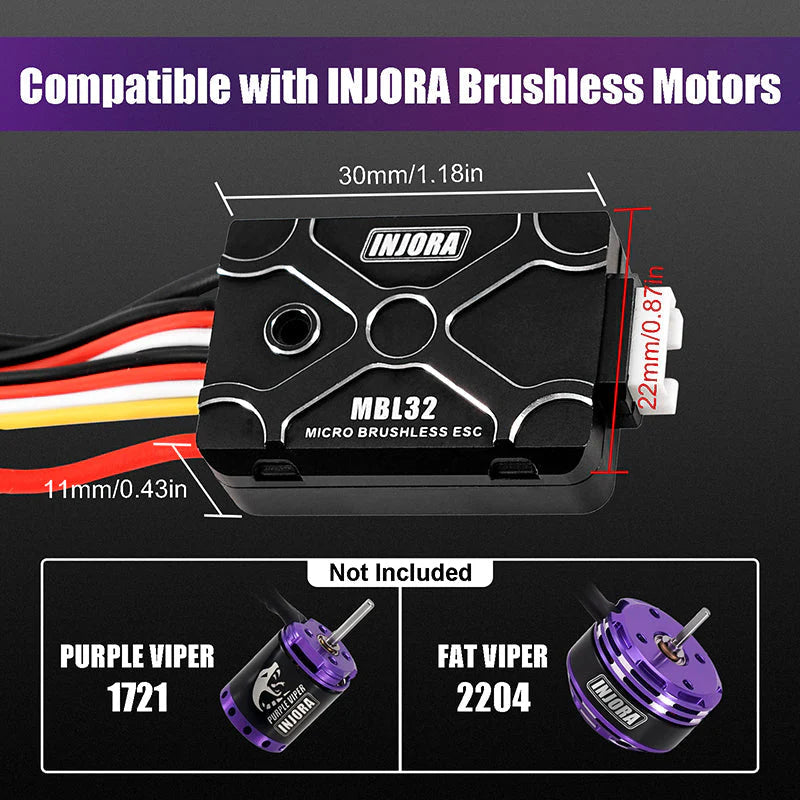

• Dimensions(L*W*H): 30*22*11mm
• Weight: 16g
• Waterproof: No

1621 Motor Specifications:

• Model Number: 1621
• Motor Type: Sensorless Brushless Outrunner
• RPM/Volt: 3600KV
• Rated Power: 3600W
• No-Load Current (10/11.1V): 0.9 A
• Max Continuous Current: 17 A
• Max Peak Current: To be determined by the model and conditions of use.
• Motor Connectors: PH2.0 3Pin
• Dimensions: Φ15.7*20.9mm
• Motor Qutput Shaft: Φ1.7mm
• Motor Pinion: 0.3mod 12T
• Weight: 16g
• Waterproof: Yes

Package List:

• 1 * Micro Brushless ESC
• 1 * 1621 Brushless Motor with Pinion & Mounting Plate
• 1 * Battery Adapter Cable (Female XT30 to Male JST PH2.0)
• 1 * Battery Adapter Cable (Female XT30 to Male JST-RCY)
• 1 * Programmer
• 1 * Instruction Manual
