INJORA: Micro Brushless MBL32 ESC & 1621 Purple Viper Motor Combo For 1/18 TRX4M Ascent18 (MBL32-1621)

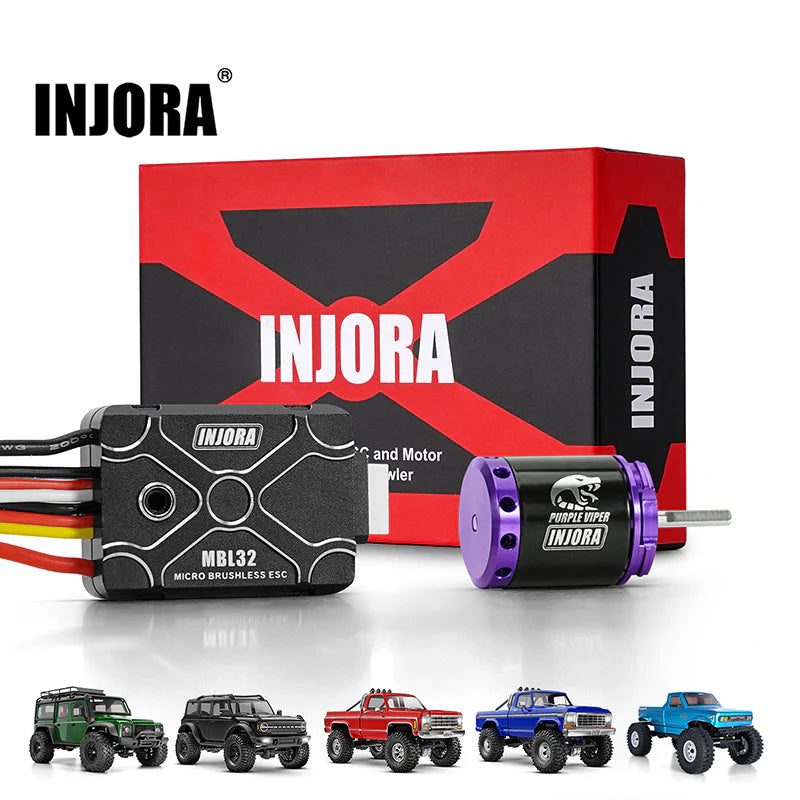

INJORA Micro Brushless MBL32 ESC & 1621 Purple Viper Motor Combo for 1/18 TRX4M Ascent18

Note:

• The motor is only compatible with: 1/18 TRX4M, 1/18 Redcat Ascent18
• The ESC is compatible with most of the receiver and remote combinations that with CH2
• Before powering on, please set the transmitter's throttle trim to 0% at neutral so the remote control can connect the ESC well.
• For optimal performance, we recommend using a 3S Lipo battery.
• Instruction Manuals
• Programming Tutorial  (Your device has been pre-configured with the optimal settings right out of the factory, so no further setup is required.)
• The motor is waterproof, the ESC is not waterproof.

Features:

• INJORA MBL32 ESC based on the AM32 firmware, is meticulously tailored for Micro crawlers and is programmable.
• The MBL32 ESC features a built-in BEC with adjustable output: 6V/7.4V
• Smooth and linear at low speeds, powerful and aggressive at high speeds.
• Runs more quietly than brushed systems, producing virtually no noise.

• 1621 Purple Viper outrunner motor, equipped with a mounting plate to mount the motor on the TRX4M transmission.
• Plug-and-Play Convenience: Includes multiple adapter cables for different battery connectors.

ESC Specifications:

• Part Number: MBL32 (MBL: Micro Brushless)
• Max.Current: 30A
• LiPo Cells: 2-3s
• Compatible Motors: INJORA 1621/2204
• Applications: 1/18 1/24 RC Crawlers
• BEC: Max 3A
• BEC Output: 6.0v/7.4V (adjustable by DIP switch)
• Motor Connectors: PH2.0 3Pin
• Dimensions(L*W*H): 30*22*11mm
• Weight: 16g
• Waterproof: No

1621 Motor Specifications:

• Model Number: 1621
• Motor Type: Sensorless Brushless Outrunner
• RPM/Volt: 3600KV
• Rated Power: 3600W
• No-Load Current (10/11.1V): 0.9 A
• Max Continuous Current: 17 A
• Max Peak Current: To be determined by the model and conditions of use.
• Motor Connectors: PH2.0 3Pin
• Dimensions: Φ15.7*20.9mm
• Motor Qutput Shaft: Φ2mm
• Motor Pinion: 0.4mod 11T
• Weight: 16g
• Waterproof: Yes

Package List:

• 1 * Micro Brushless ESC
• 1 * 1621 Brushless Motor with Pinion & Mounting Plate
• 1 * Battery Adapter Cable (Female XT30 to Male JST PH2.0)
• 1 * Battery Adapter Cable (Female XT30 to Male TRX-4M)
• 1 * Battery Adapter Cable (Female XT30 to Male T-Style)
• 1 * Battery Adapter Cable (Female XT30 to Male EC3)
• 1 * Programmer
• 1 * Instruction Manual
