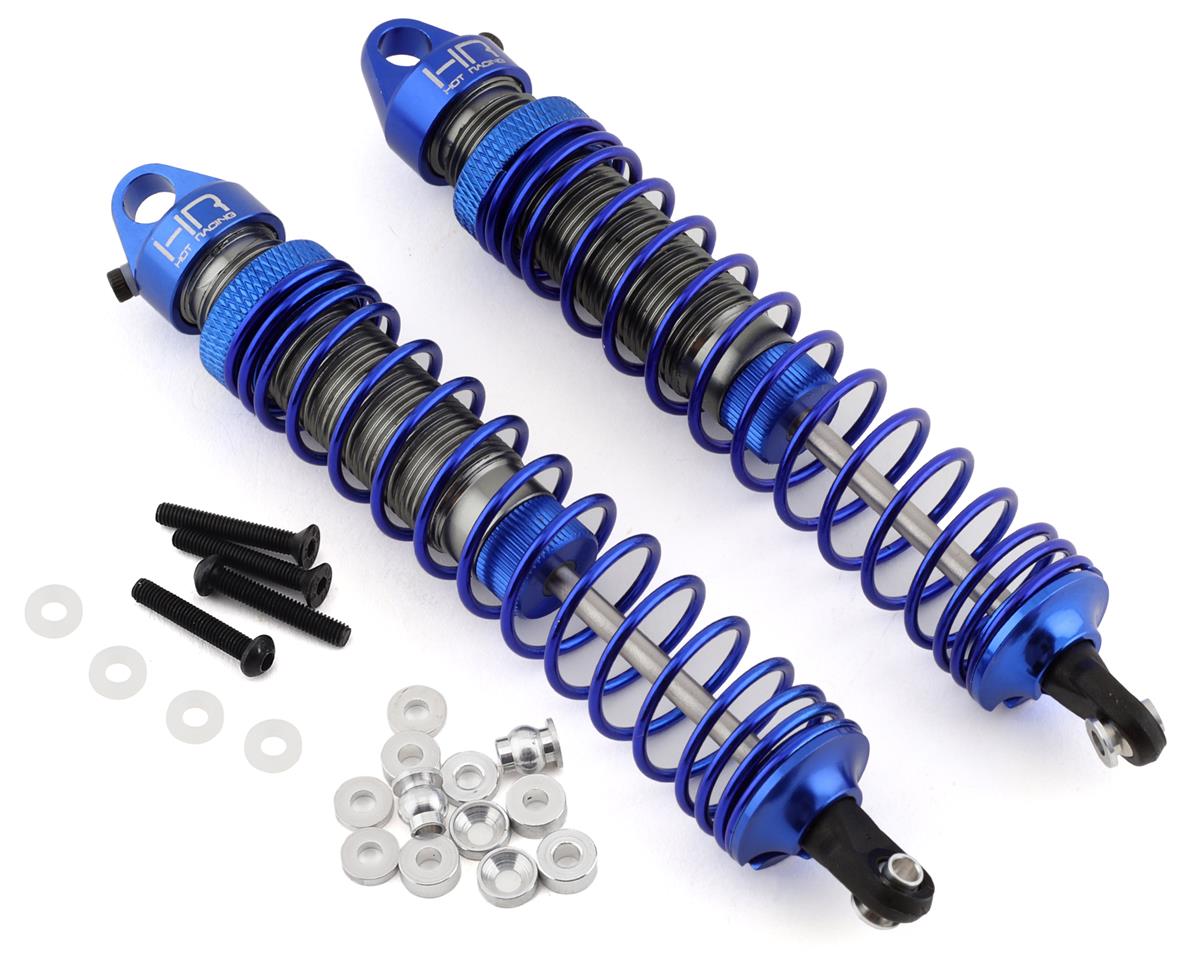

Hot Racing 120mm Aluminum Heavy Duty Big Bore Shocks (2) (HRATD120X06)

Hot Racing 120mm Aluminum Heavy Duty Big Bore Shocks (2) (HRATD120X06)

Hot Racing 120mm Aluminum Heavy Duty Big Bore Shocks. These 120mm big bore threaded body aluminum shocks fit...
Availability: 3 In Stock
$31.99
$31.99
10 customers are viewing this product
Hot Racing 120mm Aluminum Heavy Duty Big Bore Shocks (2) (HRATD120X06)

Hot Racing 120mm Aluminum Heavy Duty Big Bore Shocks (2) (HRATD120X06)

$31.99
Hot Racing 120mm Aluminum Heavy Duty Big Bore Shocks (2) (HRATD120X06)

Hot Racing 120mm Aluminum Heavy Duty Big Bore Shocks (2) (HRATD120X06)

$31.99
Description
Description
x
  • Hot Racing 120mm Aluminum Heavy Duty Big Bore Shocks. These 120mm big bore threaded body aluminum shocks fit many 1/10th scale off-road vehicles that use 120mm shocks.

    Features:
    • CNC machined 6061-T6 billet aluminum shock bodies, collars, caps, and spring retainers
    • Big Bore threaded shock bodies
    • CNC machined 11mm Delrin pistons
    • 3.5mm stainless steel shock shafts
    • Gunmetal and blue anodized aluminum components
    • Vented shock caps with bladder seals for consistent rebound dampening
    • Threaded shock collars with o-rings to prevent unwanted movement
    • Composite plastic lower shock ends with aluminum balls
    • Fully assembled, just add shock oil and bleed
    NOTE:
    • Requires silicone shock oil and bleeding per the typical bladder shock bleeding procedure
    • Best used with shock o-ring grease when rebuilding lower seal
    • Requires snap ring pliers when rebuilding lower seal
    • Use spacers as need for installation
    Specifications:
    Extended length: 120mm
    Compressed length: 75mm
    Overall length: 130mm
    Diameter: 19mm
    Spring: ~5.0lb/in, 1.54mm wire, 16 turn dual rate, 19.3mm OD, 73mm long

    Includes:
    • (2) assembled shocks
    • (2) M3x20mm flat head cap screws
    • (2) M3x18mm button head cap screws
    • (2) 3mm countersunk washers
    • (2) 5.9 hollow balls
    • (4) 1.5mm thick spacers
    • (4) 3mm thick spacers
    )
