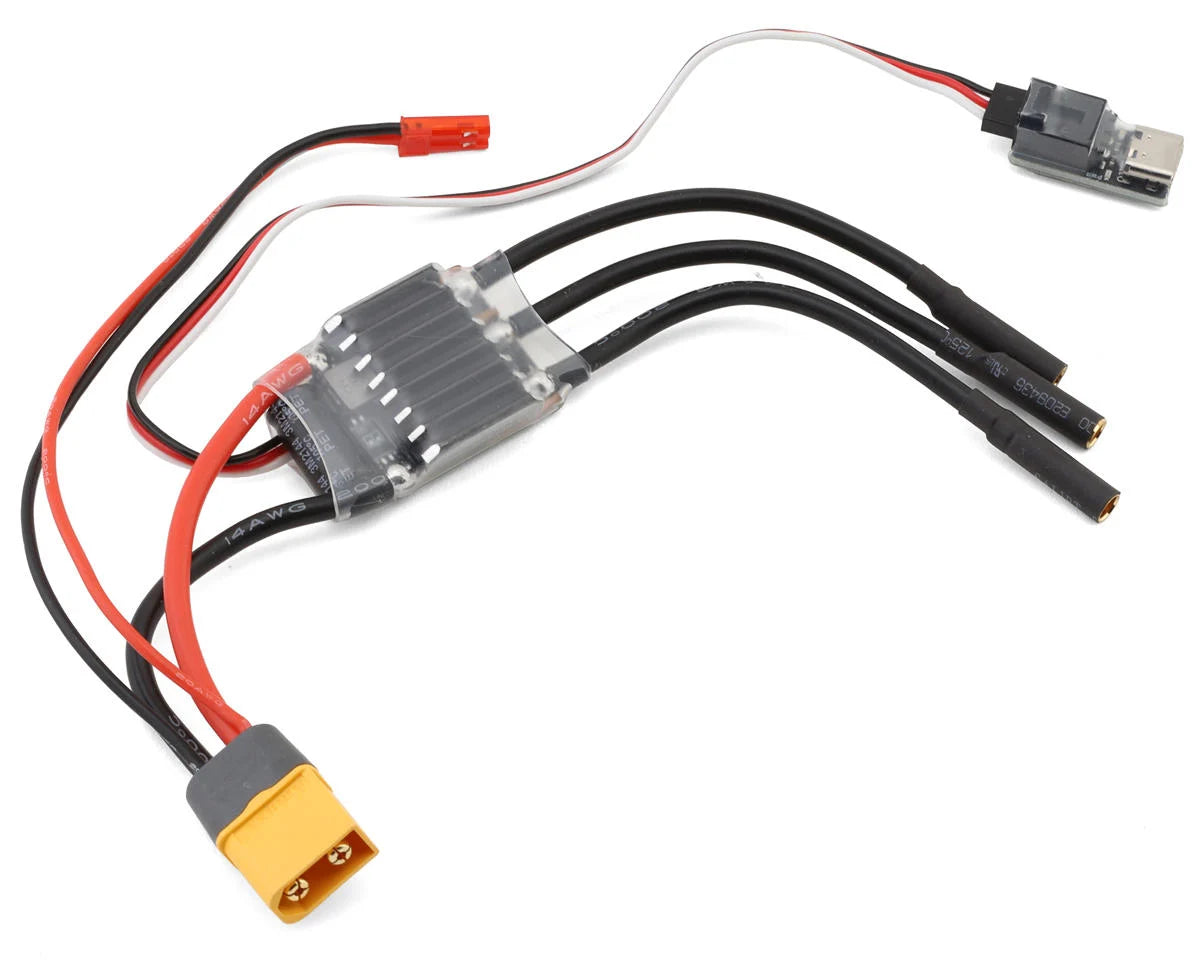

Holmes Hobbies: CrawlMaster Mini V3 Rock Crawler Brushless ESC

Holmes Hobbies CrawlMaster ESC (Electronic Speed Controller). The CrawlMaster Mini ESC is designed to fulfill the needs of comp RC Rock Crawlers looking for a small, yet powerful and versatile ESC! It harnesses the power of 32 bit technology to offer the smooth, quiet, and torque-dense driving you desire in an extra small package! The ESC comes pre-soldered and ready to plug and go! It is conformal coated for water resistance, but Holmes Hobbies recommends extra coating with CowRC's Cow-Formal coat (CPP-C46011344 - Sold Separately) if you plan to submerge the ESC.

Features:

• 32 bit technology
• Exclusive Sinewave Startup (like FOC) but open system and compatible with all motors
• Silent operation with most motors, inaudible switching frequency
• Intelligent RPM lock at low speed for unmatched control when it matters most
• Regular throttle above low speed operation for torque control and less broken parts at speed
• Overcurrent, temperature, stalled rotor, and throttle loss protection
• Automatic cell detection and low voltage protection for LiPo battery
• Ultra smooth throttle and strongest drag brake out of the box

Specifications:

• Input Voltage: 2-4S lipo (20V max)
• Internal BEC: 3A - 7.4V
• Length: 39mm
• Width: 26mm
• Height: 11m
• Weight: 39g
• Connector Type: XT60

Includes:

• (1) CrawlMaster Mini V3 Rock Crawler Brushless ESC
• (1) USB programmer
• (1) Manual

Recommended Use:

• 1/10th and smaller Single speed Trail, Scale, and Rock Crawlers such as TRX4 Sport, SCX10, Element Enduro, etc.
• 8lb limit, subject to gearing, driving style, terrain, etc.
• 1800kV motor limit for 4S use
• NOT recommended for two-speed vehicles, rock racers, tow rigs, and other high load installations
