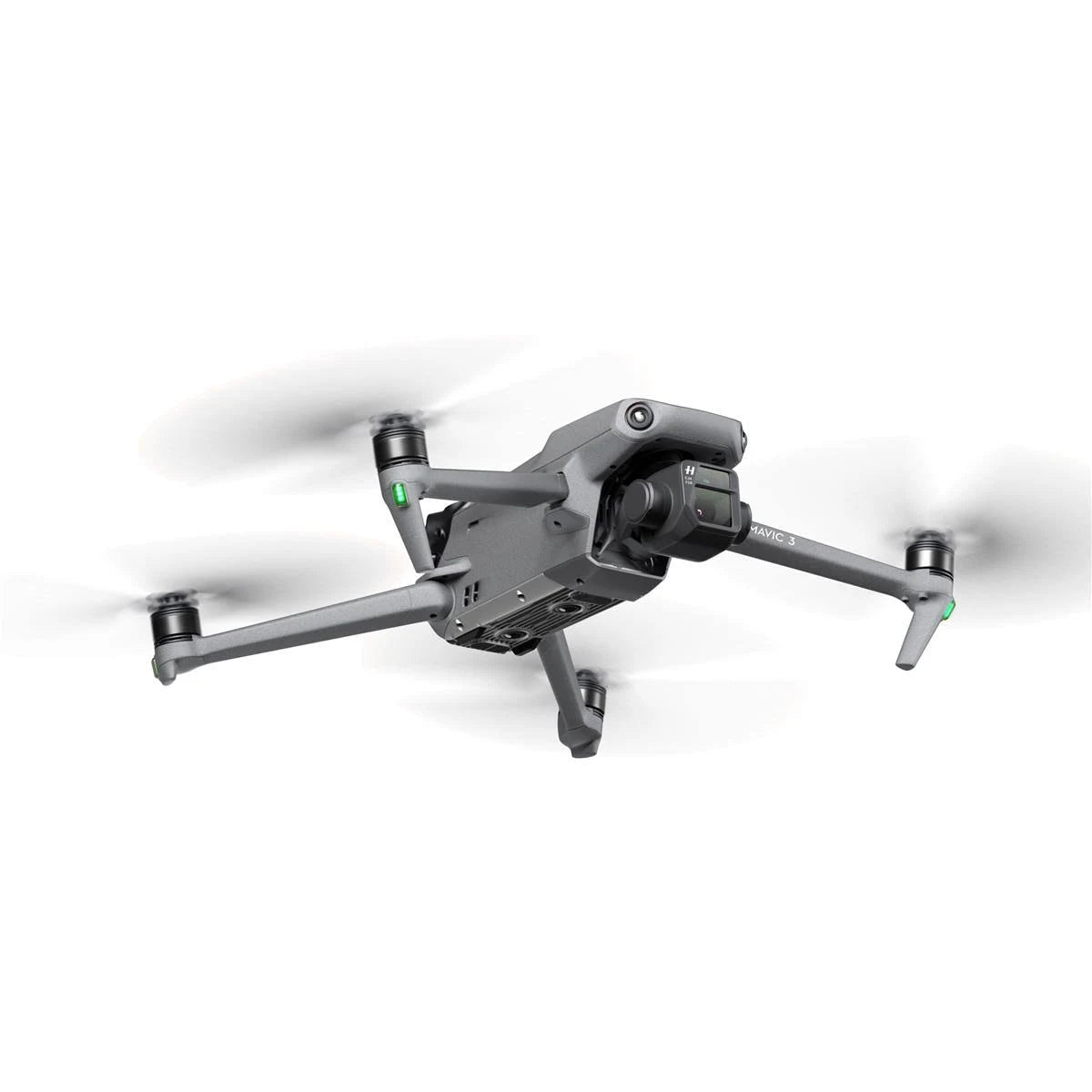

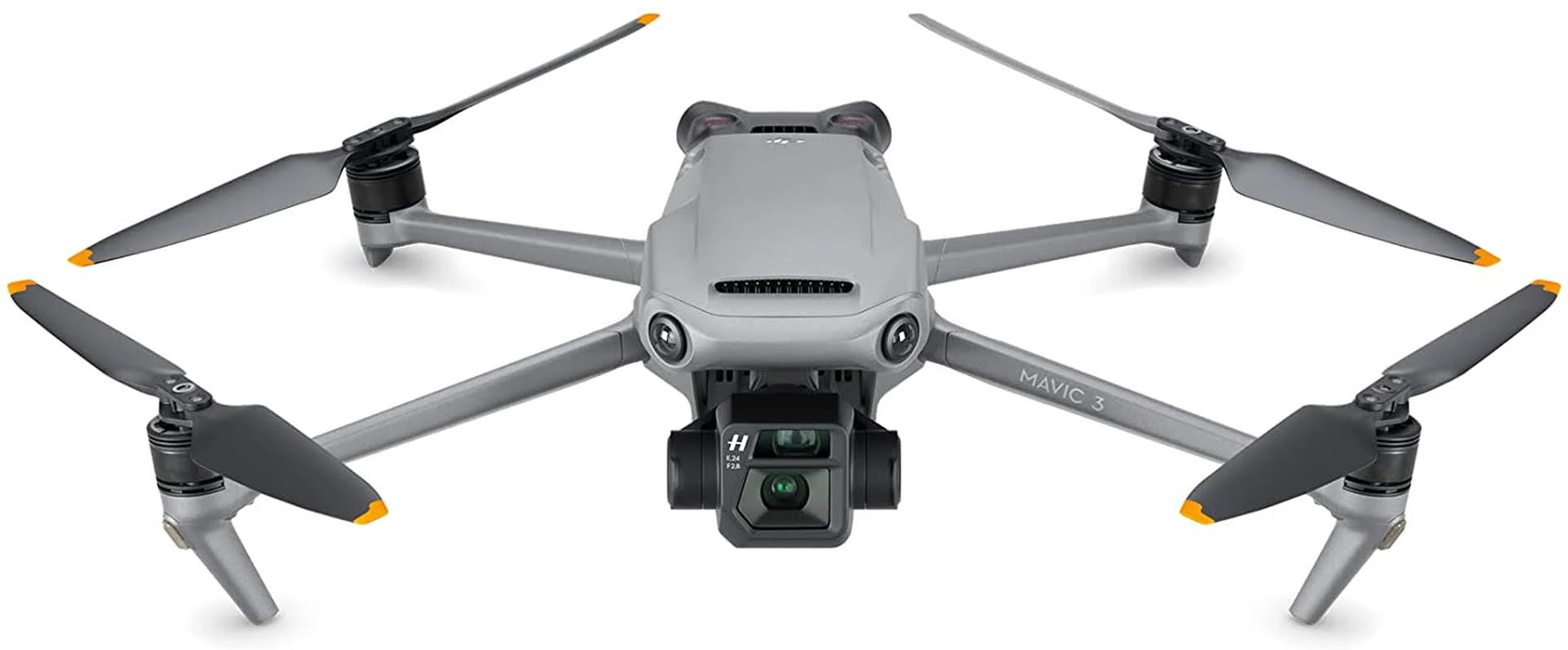

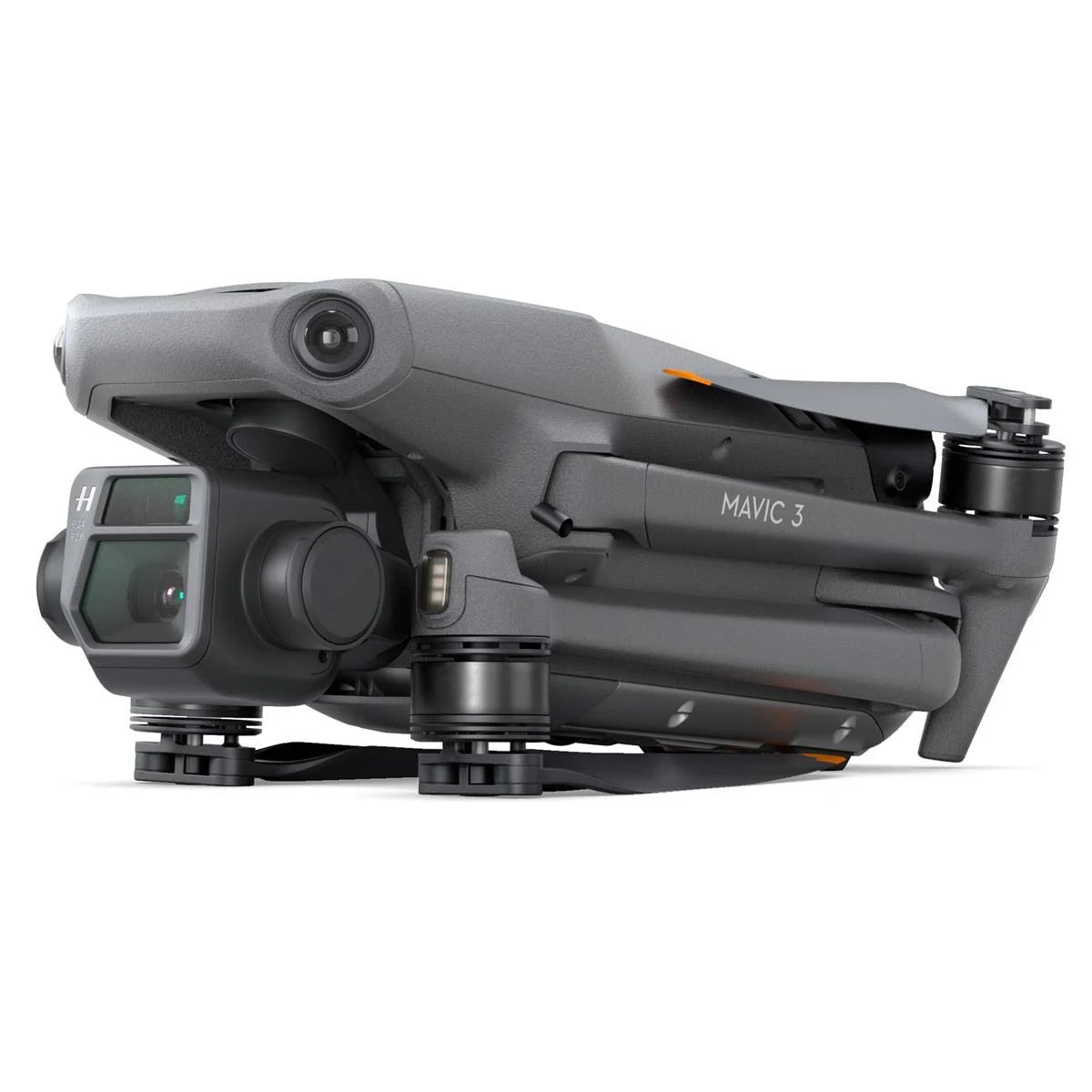

DJI Mavic 3

Aircraft

• Takeoff Weight

• Mavic 3: 895 g
  Mavic 3 Cine: 899 g

• Dimensions (Folded/Unfolded)

• Folded (without propellers) 221×96.3×90.3 mm
  (Length×Width×Height)
  Unfolded (without propellers) 347.5×283×107.7 mm
  (Length×Width×Height)


• Diagonal Length

• 380.1 mm

• Max Ascent Speed

• 1 m/s (C mode)
  6 m/s (N mode)
  8 m/s (S mode)

• Max Descent Speed

• 1 m/s (C mode)
  6 m/s (N mode)
  6 m/s (S mode)

• Max Flight Speed (at sea level, no wind)

• 5 m/s (C mode)
  15 m/s (N mode)
  19 m/s (S mode)

• Max Service Ceiling Above Sea Level

• 6000 m

• Max Flight Time (no wind)

• 46 minutes

• Max Hovering Time (no wind)

• 40 minutes

• Max Flight Distance

• 30 km

• Max Wind Speed Resistance

• 12 m/s

• Max Tilt Angle

• 25° (C mode)
  30° (N mode)
  35° (S mode)

• Max Angular Velocity

• 200°/s

• Operating Temperature

• -10° to 40° C (14° to 104° F)

• GNSS

• GPS + Galileo + BeiDou

• Hovering Accuracy Range

• Vertical: ±0.1 m (with Vision Positioning); ±0.5 m
  (with GNSS Positioning)
  Horizontal: ±0.3 m (with Vision Positioning); ±0.5 m
  (with High-Precision Positioning System)


• Internal Storage

• Mavic 3: 8 GB (available space is approx. 7.2 GB)
  Mavic 3 Cine: 1TB (available space is approx. 934.8 GB)

Hasselblad Camera

• Sensor

• 4/3 CMOS, Effective pixels: 20 MP

• Lens

• FOV: 84°
  Format Equivalent: 24 mm
  Aperture: f/2.8 to f/11
  Focus: 1 m to ∞ (with autofocus)

• ISO Range

• Video: 100-6400
  Still Image: 100-6400

• Shutter Speed

• Electronic Shutter: 8-1/8000 s

• Max Image Size

• Main Unit: 5280×3956

• Still Photography Modes

• Single shot: 20MP Photos
  Automatic Exposure Bracketing (AEB): 20 MP, 3/5 bracketed frames at 0.7 EV
  Burst shooting: 20 MP, 3/5/7
  Timed: 20 MP, 2/3/5/7/10/15/20/30/60 s

• Video Resolution

• Apple ProRes 422 HQ
  Apple ProRes 422
  Apple ProRes 422 LT
  5.1K: 5120×2700@24/25/30/48/50fps
  DCI 4K: 4096×2160@24/25/30/48/50/60/120*fps
  4K: 3840×2160@24/25/30/48/50/60/120*fps

  H.264/H.265
  5.1K: 5120×2700@24/25/30/48/50fps
  DCI 4K: 4096×2160@24/25/30/48/50/60/120*fps
  4K: 3840×2160@24/25/30/48/50/60/120*fps
  FHD: 1920×1080@24/25/30/48/50/60/120*/200*fps

  * Framerates above are recording framerates. Videos will be played as slow-motion videos.

• Max Video Bitrate

• H.264/H.265 Bitrate: 200 Mbps
  Apple ProRes 422 HQ Bitrate: 3,772 Mbps
  Apple ProRes 422 Bitrate: 2,514 Mbps
  Apple ProRes 422 LT Bitrate: 1,750 Mbps

• Supported File Formats

• exFAT

• Photo Format

• JPEG/DNG (RAW)

• Video Formats

• Mavic 3:
  MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265)

  Mavic 3 Cine:
  MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265)
  MOV (Apple ProRes 422 HQ/422/422 LT)

Tele Camera

• Sensor

• 1/2-inch CMOS

• Shutter Speed

• Electronic Shutter: 2-1/8000 s

• Lens

• FOV: 15°
  Format Equivalent: 162mm
  Aperture: f/4.4
  Focus: 3 m to ∞

• ISO Range

• Video: 100-6400
  Still Image: 100-6400

• Max Image Size

• 4000×3000

• Photo Format

• JPEG/DNG (RAW)

• Video Formats

• MP4/MOV (MPEG-4 AVC/H.264, HEVC/H.265)

• Still Photography Modes

• Single shot: 12MP Photos
  Automatic Exposure Bracketing (AEB): 12 MP, 3/5 bracketed frames at 0.7 EV
  Burst shooting: 12 MP, 3/5/7
  Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s

• Video Resolution

• H.264/H.265
  4K: 3840×2160@25/30/50fps
  FHD: 1920×1080@25/30/50fps

• Digital Zoom

• 4x

Gimbal

• Stabilization

• 3-axis motorized (tilt, roll, pan)

• Mechanical Range

• Tilt: -135° to 100°
  Roll: -45° to 45°
  Pan: -27° to 27°

• Controllable Range

• Tilt: -90° to 35°
  Pan: -5° to 5°

• Max Control Speed (tilt)

• 100°/s

• Angular Vibration Range

• ±0.007°

Sensing

• Sensing System

• Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft

• Forward

• Measurement Range: 0.5-20 m
  Detection Range: 0.5-200 m
  Effective Sensing Speed: Flight Speed ≤ 15m/s
  FOV: Horizontal 90°, Vertical 103°

• Backward

• Measurement Range: 0.5-16 m
  Effective Sensing Speed: Flight Speed ≤ 12m/s
  FOV: Horizontal 90°, Vertical 103°

• Lateral

• Measurement Range: 0.5-25 m
  Effective Sensing Speed: Flight Speed ≤ 15m/s
  FOV: Horizontal 90°, Vertical 85°

• Upward

• Measurement Range: 0.2-10 m
  Effective Sensing Speed: Flight Speed ≤ 6m/s
  FOV: Front and Back 100°, Left and Right 90°

• Downward

• Measurement Range: 0.3-18 m
  Effective Sensing Speed: Flight Speed ≤ 6m/s
  FOV: Front and Back 130°, Left and Right 160°

• Operating Environment

• Forward, Backward, Left, Right, and Upward: Surface with a clear pattern and adequate lighting (lux>15)
  Downward: Surface with a clear pattern and adequate lighting (lux >15). Diffuse reflective surface with diffuse reflectivity>20% (e.g. wall, tree, person)

Video Transmission

• Video Transmission System

• O3+

• Live View Quality

• Remote Controller: 1080p@30fps/1080p@60fps

• Operation Frequency

• 2.400-2.4835 GHz
  5.725-5.850 GHz

• Max Transmission Distance (unobstructed, free of interference and aligned with controller)

• 2.400-2.4835 GHz; 5.725-5.850 GHz
  FCC: 15 km
  CE: 8 km
  SRRC: 8 km
  MIC: 8 km

• Signal Transmission Ranges (FCC)

• Strong Interference (urban landscape, limited line of sight, many competing signals): Approx. 1.5-3 km
  Medium Interference (suburban landscape, open line of sight, some competing signals): Approx. 3-9 km
  Low Interference (open landscape abundant line of sight, few competing signals): Approx. 9-15 km

  Data is tested under different standards in open areas free of interference. It only refers to the maximum, one-way flight distance without considering Return to Home. Please pay attention to RTH prompts in the DJI Fly app during actual flight.

• Max Download Bitrate

• O3+:
  5.5MB/s (with RC-N1 remote controller)
  15MB/s (with DJI RC Pro remote controller)
  Wi-Fi 6:
  80MB/s*

  * Measured in laboratory environments with little interference in countries/regions that support both 2.4GHz and 5.8GHz, and the footage is saved in the built-in SSD or internal storage. Download speed may vary depending on actual conditions.

• Latency (depending on environmental conditions and mobile device)

• 130 ms (with RC-N1 remote controller)
  120 ms (with DJI RC Pro remote controller)

• Antennas

• 4 antennas, 2T4R

• Transmitter Power (EIRP)

• 2.4 GHz: ≤33 dBm (FCC); ≤20 dBm (CE/SRRC/MIC)
  5.8 GHz: ≤33 dBm (FCC), ≤30 dBm(SRRC), ≤14 dBm(CE)

Battery

• Capacity

• 5000 mAh

• Voltage

• 15.4 V

• Charging Voltage Limit

• 17.6 V

• Battery Type

• LiPo 4S

• Energy

• 77 Wh

• Weight

• 335.5 g

• Charging Temperature

• 5° to 40° C (41° to 104° F)

Battery Charger

• Input

• 100-240 V AC, 47-63 Hz, 2.0 A

• USB-C Output

• USB-C: 5.0 V⎓5.0 A/9.0 V⎓5.0 A/12.0 V⎓5.0 A/15.0 V⎓4.3 A/20.0 V⎓3.25 A/5.0~20.0 V⎓3.25 A

• USB-A output

• USB-A: 5 V⎓2 A

• Rated Power

• 65 W

Charging Hub

• Input

• USB-C: 5-20 V⎓5.0 A max

• Output

• Battery: 12-17.6 V⎓5.0 A max

• Rated Power

• 65 W

• Charging Type

• Charges three batteries in sequence.

• Charging Temperature Range

• 5° to 40° C (41° to 104° F)
