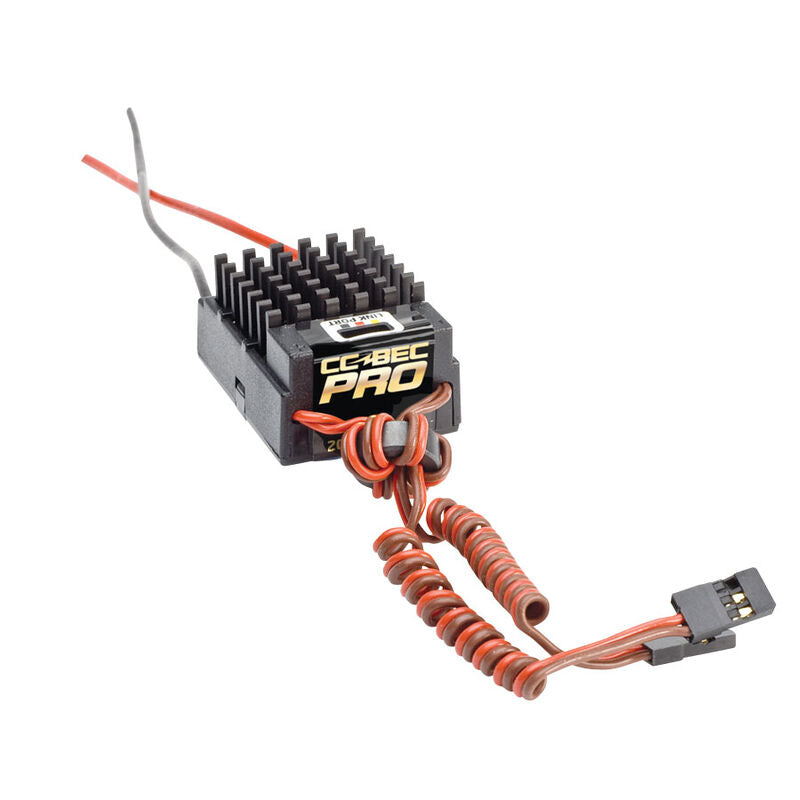

Castle Creations BEC PRO 20A Max output 12S Max Switching Regulator (CSE010000400)

• Rated for up to 12S input (50.4 volts)
• Peak Output of up to 20 amps
• Fully adjustable using the Castle Link USB Adapter and a Windows PC
• Length: 1.69 in (43mm)
• Width: 1.3 in (33mm)
• Height: .94 in (24mm)
• Weight: 1 oz (29 grams) without wires

The Castle PRO BEC is intended for use in larger RC cars, electric aircraft, and helis that have high power demands for their radio/servo systems. It is ideal for most electric helis 500-size and larger. It will also work well in larger electric powered RC aircraft and RC crawlers and Monster Trucks that have high-powered servos.

Specifications:

Current Output: Peak: 10 amps
Continuous:
<12 volts input = 7 amps*
<24 volts input = 5 amps**Ratings are determined with a 5mph airflow on the BEC. Servo connectors are not rated for current in excess of 5 amps. Users are encouraged to replace the connectors if more than 5 amp currents are anticipated.

Output Voltage: Output 5.1 volts out of the package, user may set output voltage from 4.8 to 9 using the Castle Link (sold separately).

Input Voltage: 5v to 25.2v (2S to 6S LiPo)
Length: 1.2” (30mm)
Width: 0.6” (15mm)
Height: 0.4” (10mm)
Weight: 0.4 oz (11 grams)
