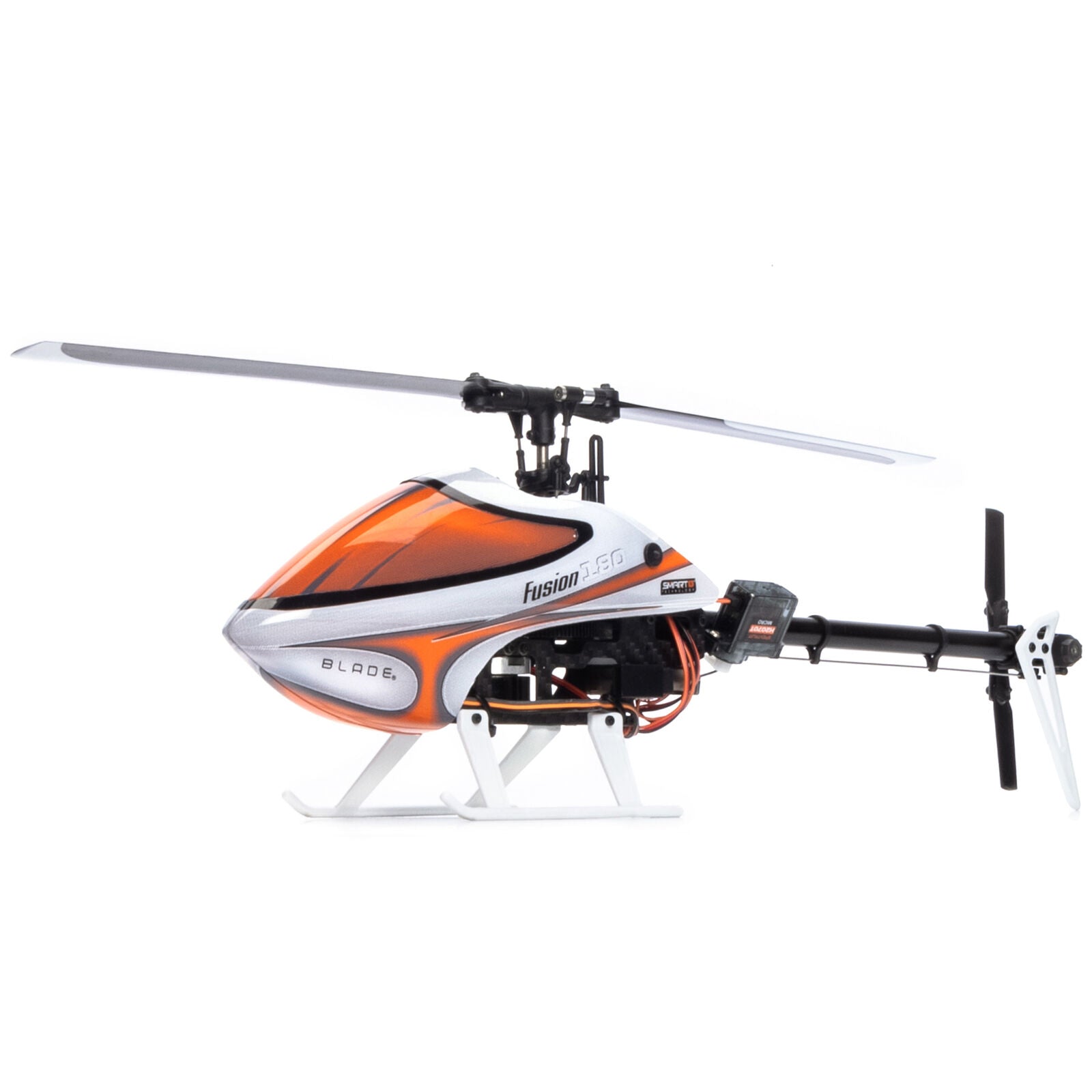

Blade Fusion 180 Smart BNF Basic (BLH05850)
Manual & Parts List Product Details Featuring the latest advancements in Spektrum™ technology, the Blade® Fusion™...
Availability:
Out Of Stock
- $299.99
- $299.99
- Unit price
- per
10 customers are viewing this product
Couldn't load pickup availability
Description
x
Manual & Parts List |
Product Details
Featuring the latest advancements in Spektrum™ technology, the Blade® Fusion™ 180 Smart helicopter continues the legacy of the Blade Fusion line and is a high-performance 3D machine ready for intermediate helicopter pilots.
Key Features
- SAFE: Optional Stability Mode and Panic Recovery
- SMART: Integrated Smart Technology
- RUGGED DURABILITY: Carbon Fiber Components
In The Box
- (1) Factory Assembled Blade Fusion 180 Smart Helicopter With:
- (1) Spektrum AR6250MHX Flybarless Flight Controller
- (1) Brushless Outrunner Motor, 3900Kv
- (1) Spektrum™ Avian™ Smart 15 Amp ESC
- (3) Sub-Micro Digital Metal Geared Heli Cyclic Servos
- (1) Sub-Micro Digital Heli Servo
- (1) Product Manuel
Needed to Complete
- (1) 6+ Channel Spektrum™ 2.4GHz DSM2®/DSMX® Transmitter
- (1) 450mAh 4S 14.8V 30C LiPo Battery with IC2® Connector
- (1) Compatible LiPo Charger With iC2 To iC3 Charge Adapter (SPMXCA320 recommended)
HIGH PERFORMANCE IN A SMALL SIZE
Featuring the latest advancements in Spektrum™ technology, the Blade® Fusion™ 180 Smart helicopter continues the legacy of the Blade Fusion line and is a high-performance 3D machine ready for intermediate heli pilots. The revised Fusion adds a redeveloped carbon fiber main frame that's lightweight and extremely rigid. Additionally, a belt-driven tail and newly developed tail case improves tail performance and overall durability. Hosting this belt is an over-sized tail boom large enough to eliminate the need for boom supports. Optimized servo geometry greatly reduces mechanical loss and improves control efficiency to the swashplate. A painted carbon fiber tail fin finishes the sleek styling of the Fusion 180 Smart redesigned canopy. Featuring the latest in Spektrum technology, the Fusion 180 Smart is equipped with the expertly tuned micro 6250HMX Flight Controller yet remains adjustable for pilots to fine tune to their flying style. Also, a Spektrum™ Avian™ 15 Amp ESC offers improved, precise head speed control for that high performance flight that doesn't lag behind. Innovative SAFE technology help pilots progress from simple maneuvers to advanced 3D stunts with confidence. Plus, with the inclusion of Smart technology, battery charging, and power system management is now easier than ever and virtually worry free. With BNF Basic convenience, pilots simply add a 4S 450mAh battery, bind their 6+ channel Spektrum DSMX transmitter, and take to the skies.
SAFE® Technology
The Blade® Fusion™ 180 Smart helicopter features exclusive SAFE® (Sensor Assisted Flight Envelope®) technology, a revolutionary electronic flight envelope protection system that makes it easy for anyone to fly helicopters with confidence by providing flight mode versatility and Panic Recovery mode that automatically returns the heli to a level attitude.
Spektrum™ Avian™ Smart 15 Amp ESC included
The Spektrum™ Avian™ Smart 15 amp ESC transmits Battery voltage and ESC data straight to your Spektrum Transmitter all over one wire. An Avian electronic speed control provides a one-wire solution for obtaining telemetry data such as current, voltage, temperature and RPM. The Avian ESC 32-bit M4 processor produces higher resolution signal input and more accurate motor output for a locked in and active throttle response.
Spektrum™ AR6250MHX Flybarless Controller
Cutting-edge Spektrum technology is featured throughout this beast from Spektrum H2070 cyclic and H2070T tail servos with Optimized Servo Geometry to the new ground-breaking Spektrum AR6250MHX flybarless system. This new flybarless controller features advanced adaptive flight control algorithms, forward programming, 6-axis M.E.M.S. inertial sensor, low-latency high-speed operation, two remote receiver ports for diversity, and a vibration rejecting aluminum lower case.
Optimized Fusion Design
The carbon fiber main frame takes rigidity to another level for a rock-solid flight experience. An oversized tail boom eliminates the need for boom supports and is crowned by an ABS plastic tail case improving vibration damping and performance.
Belt Driven Tail
The Fusion 180 Smart features a belt driving tail improving durability and tail performance.
Aggressive and Attractive Trim Scheme
The Fusion 180 features an expertly painted canopy and matching tail fin that is both attractive and purposeful. The bright color scheme is easy to see when tearing up the sky and is sure to catch the eye of everyone at the flight line.
Product Specifications
| Approximate Flight Time | 3 - 4 Minutes |
| Battery | Sold Separately |
| Canopy/Body Material | Plastic |
| Channels | 6 |
| Charger | Sold Separately |
| Completion Level | Bind-N-Fly Basic |
| Power Type | Electric |
| Main Blade Material | Plastic |
| Main Frame Material | Carbon Fiber |
| Main Motor Type | Brushless |
| Main Rotor Blade Length | 7.08" (180 mm) |
| Main Rotor Diameter | 16.22" (412 mm) |
| Main Rotor Head Type | Collective Pitch Flybarless |
| Product Weight | 8.46 oz (240g) |
| Product Width | 2.36" (60 mm) |
| Receiver | Included |
| Servos | Included |
| Skill Level | Level 3 |
| Speed Control | Included |
| Swashplate Type | 120 Degree CCPM |
| Tail Blade Material | Plastic |
| Tail Drive | Belt Drive |
| Tail Rotor Blade Length | 1.41" (36 mm) |
| Tail Rotor Diameter | 3.93" (100 mm) |
| Technology | Smart, AS3X and SAFE |
