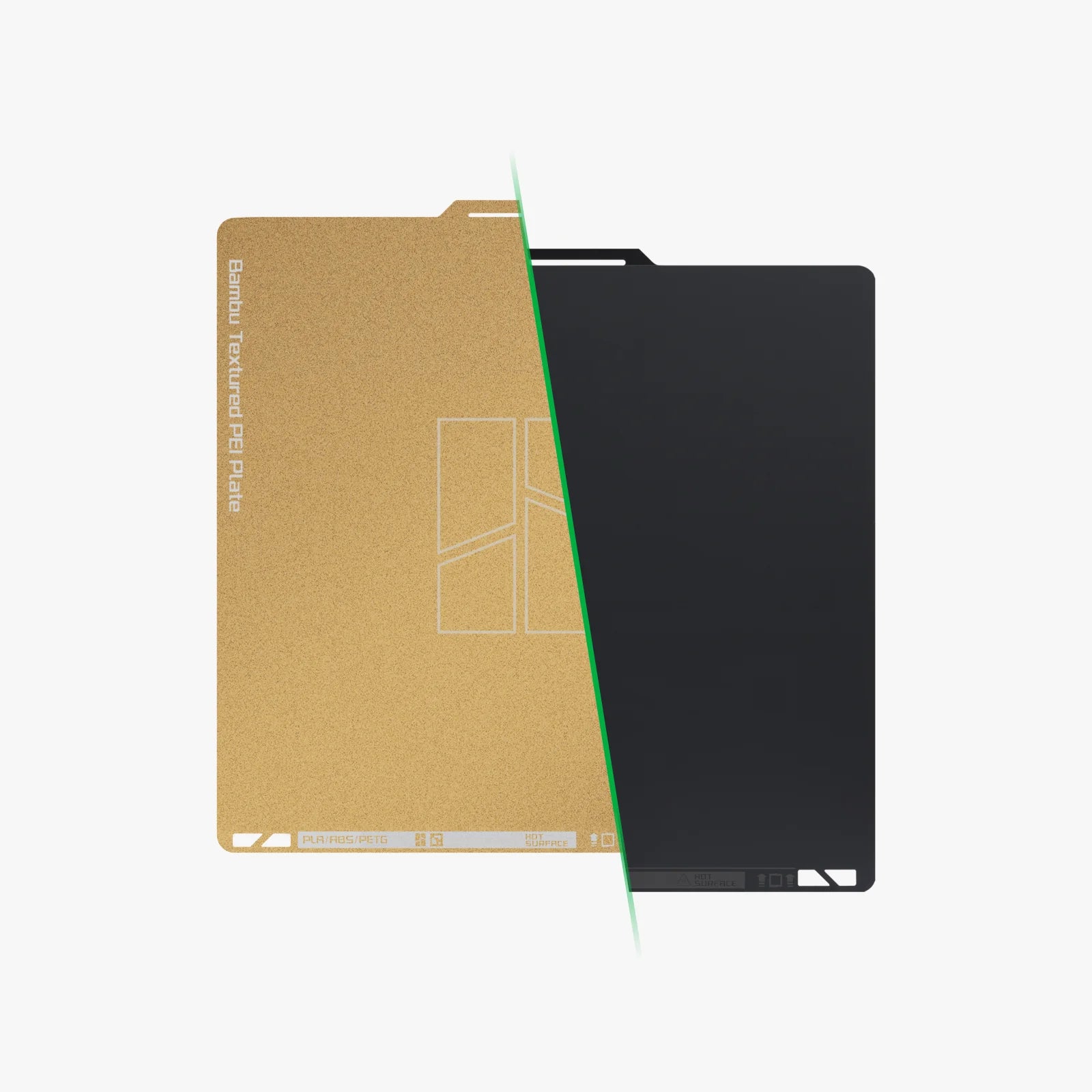

Enjoy the benefits of two different textures in one plate, one side is Textured PEI surface and the other side is Smooth PEI surface. This Plate features a 0.5mm magnetic stainless steel plate that enhances magnetic adhesion and helps to prevent warping and ensure optimal print quality during 3D printing.
The use of a specially selected matte PEI sheet can impart a smooth and matte texture to the bottom surface of the printed object, enhancing its overall appearance.
Textured PEI surface can withstand the repeated heating and cooling cycles of a printer heatbed. Prints come off easily when the temperature of the heatbed reaches room temperature.
Please note that other slicer settings might need to be adjusted based on the printed model and the filament requirements
Materials | Heatbed Temperature | Glue Required for Smooth PEI Surface? | Glue Required for Textured PEI Surface? |
PLA/PLA-CF/PLA-GF | 45~65℃ | No | No |
PETG/PETG-CF | 60~80℃ | Glue Stick/Liquid Glue | No |
ABS | 90~100℃ | Glue Stick/Liquid Glue | No |
ASA | 90~100℃ | Glue Stick/Liquid Glue | No |
TPU | 35~45℃ | Glue Stick/Liquid Glue | Glue Stick/Liquid Glue |
PVA | 45~60℃ | Glue Stick/Liquid Glue | No |
PC/PC-CF | 90~110℃ | Glue Stick | Glue Stick |
PA/PA-CF/PAHT-CF | 90~110℃ | Glue Stick | Glue Stick |
PET-CF | 80~100℃ | Glue Stick/Liquid Glue | No |
Step 1: Align the plate with the fixed points of the platform with the name of the plate facing you
Step 2: Lower the plate and secure to the magnetic platform
Material |
PEI powder coating+ magnetic Stainless Steel Plate + Smooth PEI Sheet
|
Textured PEI coating/PEI sheet thickness
|
0.075 mm/
0.125 mm
|
Color
|
Gold,
Charcoal grey
|
Flexible spring steel thickness
|
0.5 mm
|
Usable print size
|
256*256 mm
|
Package size
|
300*270*17mm
|
Package weight
|
0.45kg
|
