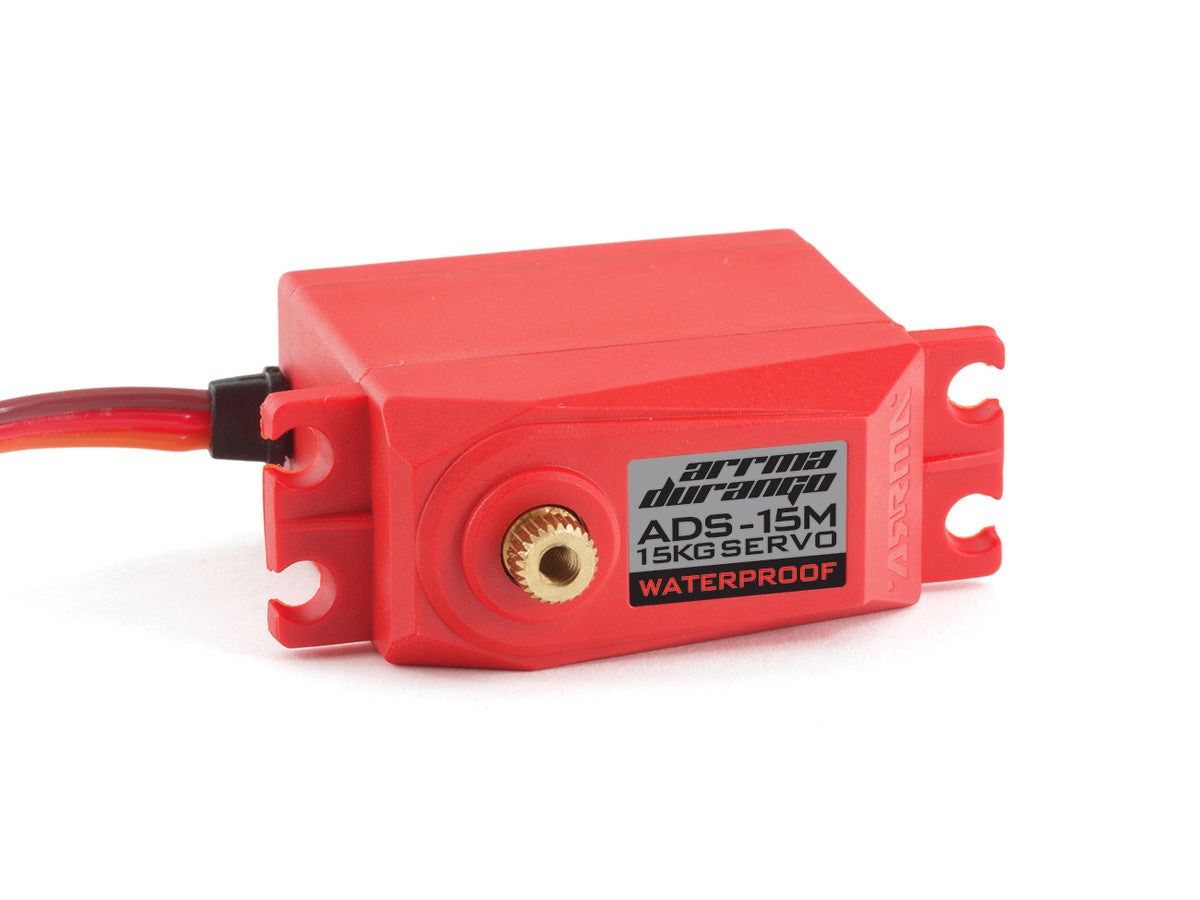

ARRMA (AR390139) ADS-15M V2 15kg Waterproof Servo, Red (ARAM1025)

Product Compatibility:

• ADX10
• BIGROCK
• FAZON
• FELONY
• FURY
• GRANITE
• INFRACTION
• KRATON
• LIMITLESS
• MOJAVE
• NERO
• NOTORIOUS
• OUTCAST
• RAIDER
• SENTON
• TALION
• TYPHON
• VORTEKS

The ADS-15M V2 Servo is designed to give you fast and precise steering. Resilient to the elements and built from hard-wearing materials.

Specification:

• Case – Red, Water-proof & dust-proof
• Bearing – Dual ball bearing

• Connector – ‘Futaba style’ 3 pin connector

• Gears – Metal

• Spline – 25 Tooth

• Dimensions: 40mm x 38mm x 20mm (Excluding mounting tabs), Industry Standard size

• Wire length: 300mm

• Torque – ADS-15M: 15kg-cm (208oz-inch) at 7.2V, 14kg-cm (195oz-in) at 6.0V

• Speed – 0.14 sec/60 deg at 7.2V, 0.16 sec/60 deg at 6.0V

• Signal – Analogue
