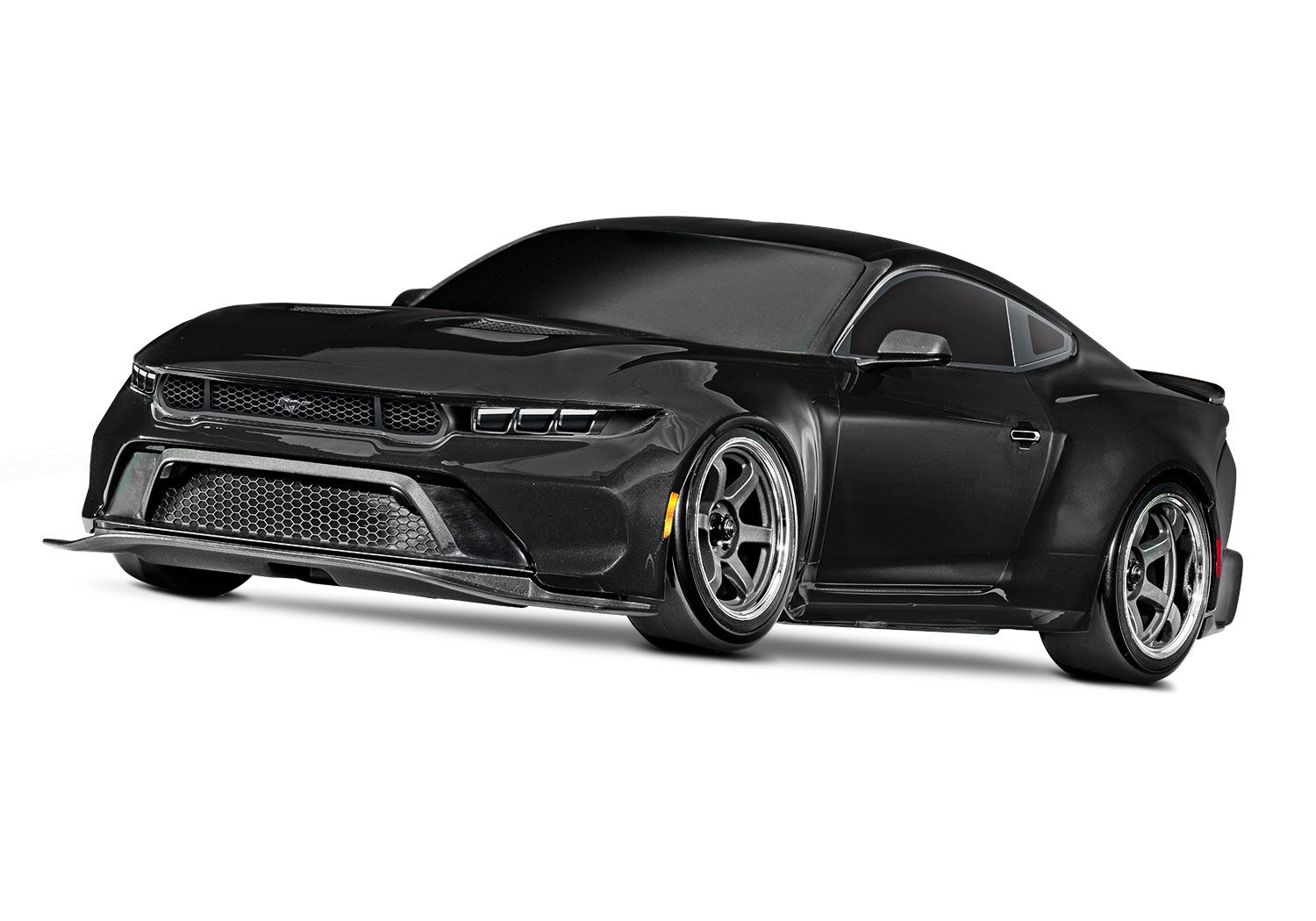

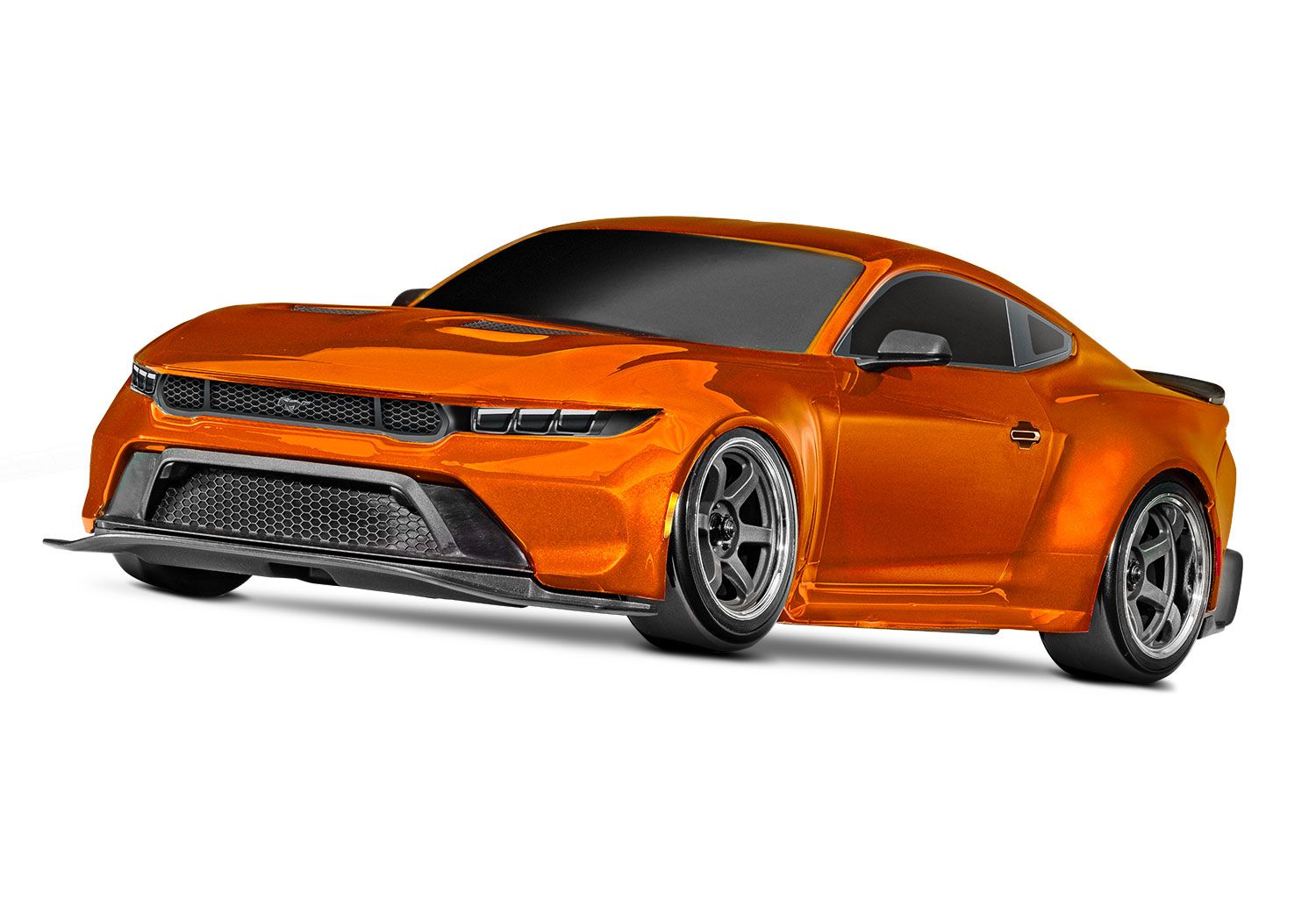

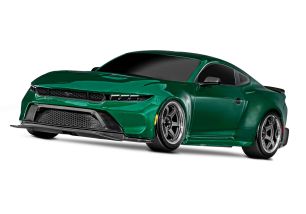

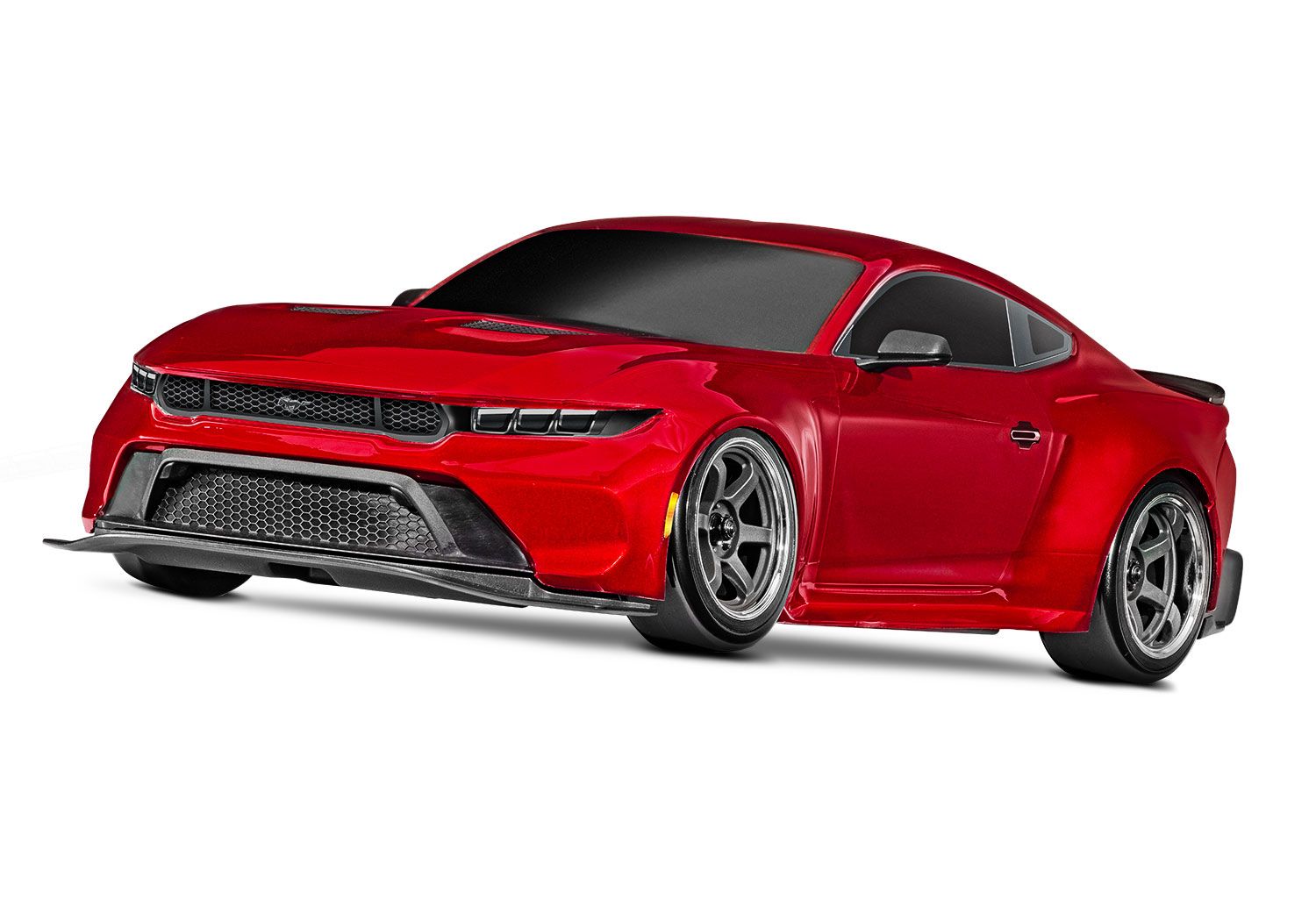

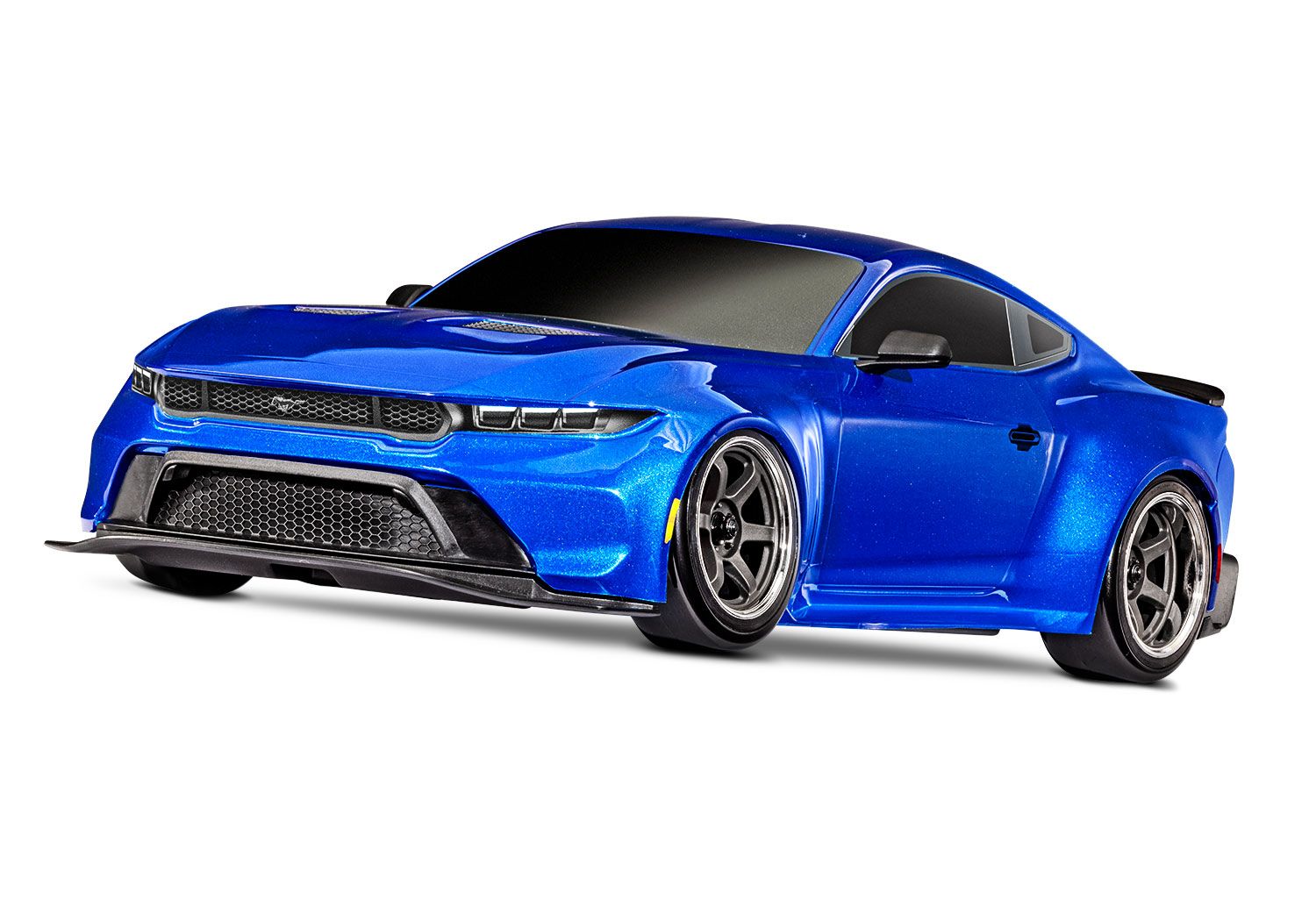

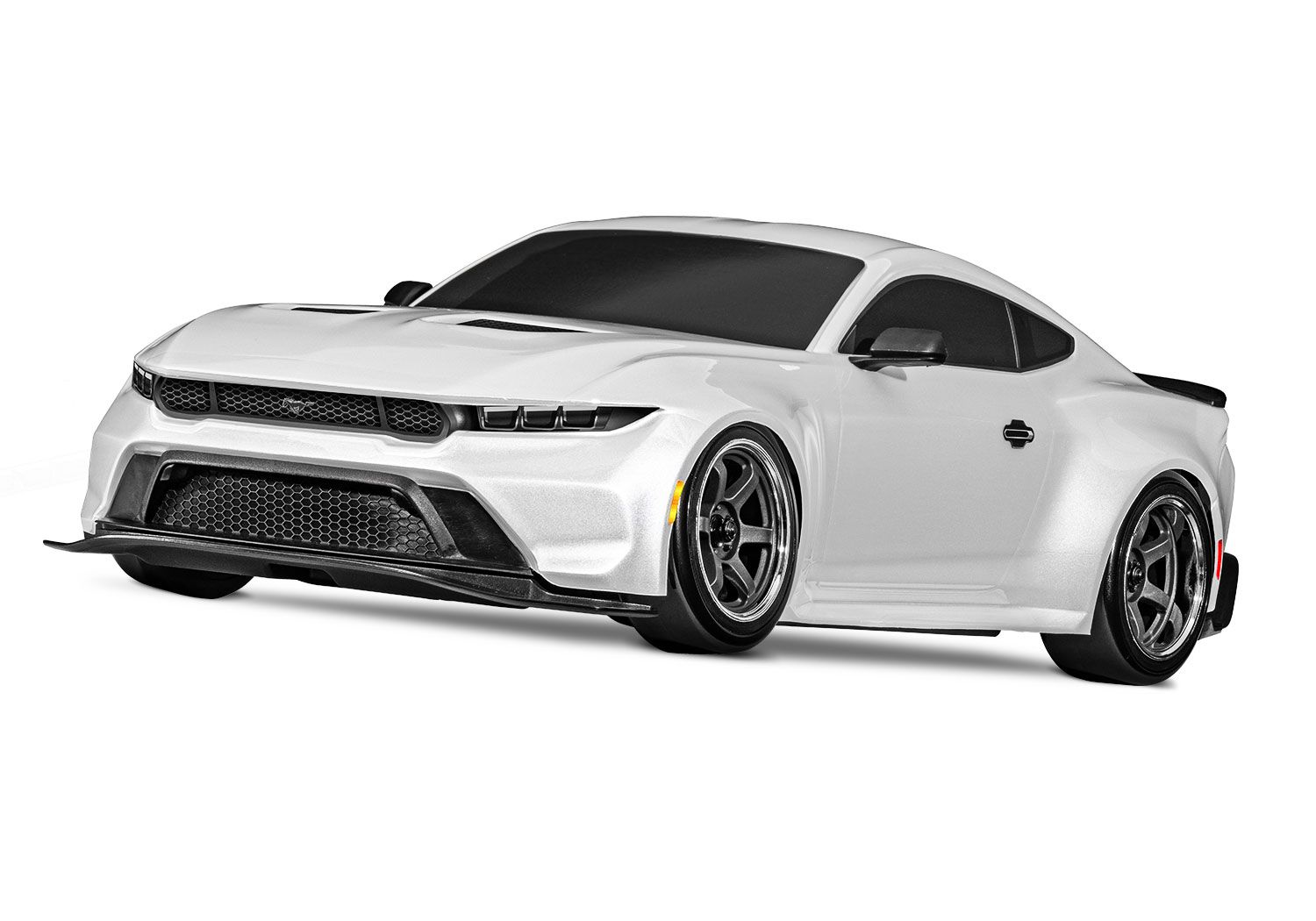

Traxxas 4-Tec Drift Ford Mustang (105237-4)

Officially Licensed Ford^® Mustang Body
- Clipless body eliminates body post holes
- Injection molded details
  - Grille, splitter, hood vents, side mirrors, and spoiler
- Replica brake discs with red calipers
Clipless Body Mounts
- Quick and easy removal of the body
- Reinforced body mounts integrated into molded details
High-Performance Waterproof XL-5™ Electronic Speed Control
- Innovative waterproof design
- Three drive profiles
  - Sport Mode - forward / brake / reverse
  - Race Mode - forward / brake
  - Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Traxxas EZ-Set^® one-button setup
- LiPo and NiMH compatible with two-stage low-voltage detection
Titan^® Drift Motor
- 21-turn brushed 550 motor
- Internal cooling fan
- Virtually maintenance-free operation
- Fixed gear mesh motor plate
- Molded wire retainer keeps motor wires secure

TQi™ 2.4 GHz Radio System with Wireless Module
- Includes 6511 Traxxas Link™ Wireless Module
- TQi 3-channel transmitter
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Electronic handbrake
- 5-channel micro receiver (6533) with fail-safe security
- Patented waterproof receiver box with easy-access plug
Traxxas Stability Management (TSM)^® with 3 Drift Modes
- TSM Drift Mode
- TSM Mode
- Gyro Mode
- Adjusts from off to 100% assistance from the transmitter
High-Angle Steering
- Over 60° of steering throw at full lock
- Digital high-torque ball bearing 2075 servo
Low Center of Gravity (Low CG) Chassis
- Positions weight low for improved handling
- Smooth underside resists drag and snags
- Modular interlocking chassis pieces
  - Improves rigidity and tightens tolerances
  - Allows for easy maintenance

Adjustable Battery Hold Down
- Easy, secure battery installation
- Swivels to allow different height batteries
- Locks securely without pins or parts to lose
High Performance Suspension
- Geometry tuned for drifting
- Dual rear camber link mounts
- Adjustable droop, camber, toe, ackerman, track, & roll center
New Rear-Wheel-Drive Layout
- Direct drive, no slipper clutch
- Rear spool with spiral-cut gears
Springs and Shocks
- Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
- Extra-soft springs to maximize weight transfer
Wheels and Tires
- Six-spoke tuner wheels
- Rubber wheel inserts hold tires securely
- Includes hard and soft compound drift tires
- Replica brake discs incorporate standard 12 mm wheel hexes
Rubber-Sealed Ball Bearings
Precision Hex Hardware

Motor Name:	Titan Drift 21T 550
Motor Type:	High-torque brushed motor
Motor Weight:	8.47 ounces (240 g)
Motor Length:	3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length
Motor Diameter:	1.53 inches (39 mm)
Motor Shaft Size:	3 mm
Motor Connector Type:	Bullet

ESC Name:	Waterproof XL-5 ESC with low-voltage detection
ESC Type:	Brushed
ESC Case Size:	1.23 inches (31 mm) / 2.18 inches (55 mm) / 0.61 inches (15 mm)
ESC Weight:	2.44 ounces (69 g)
Motor Connectors:	Bullet
Battery Connectors:	Traxxas High Current Connector
ESC Power Wire:	14 gauge

Wheelbase:	10.11 inches (257 mm)
Center Ground Clearance:	0.5 inches (12 mm)
Drive System:	Rear Wheel Drive
Drivetrain:	2WD
Transmission:	Single speed direct drive
Differential Type:	Spool
Gear Pitch:	48 pitch
Servo(s):	2075 digital high-torque waterproof
Radio System:	TQi™ 2.4 GHz 3-channel transmitter
Battery Compartment Specs:	174 mm X 48 mm X 23 mm or 26 mm
